| Item | Parameter | Localization Adaptation Note |
|---|---|---|

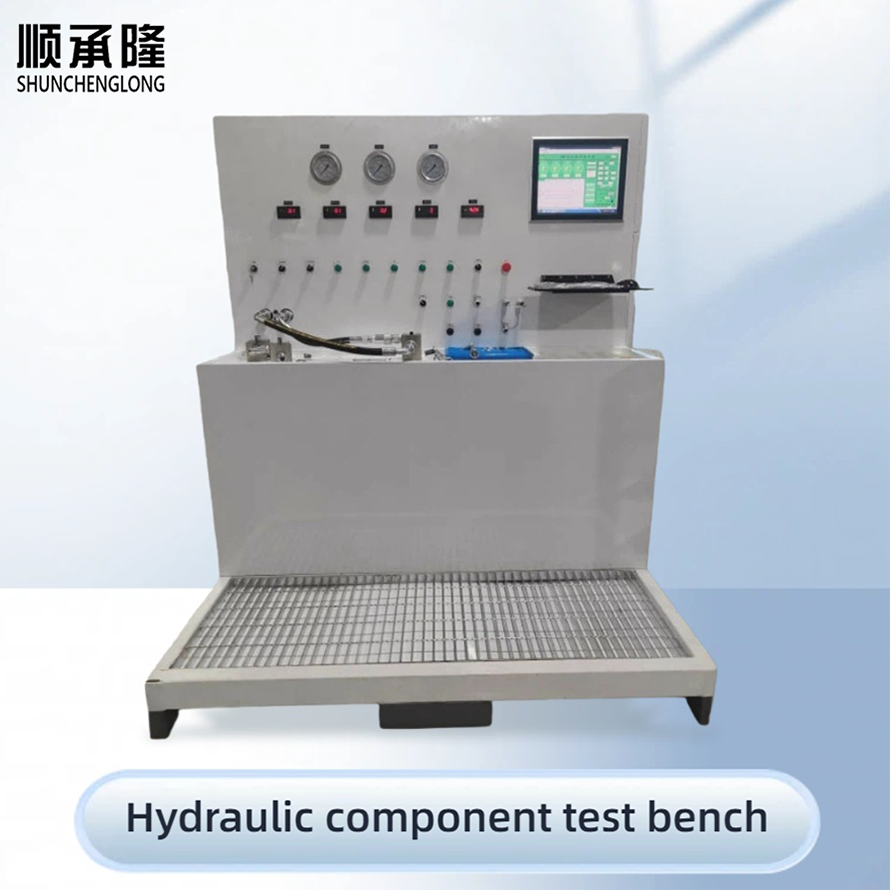

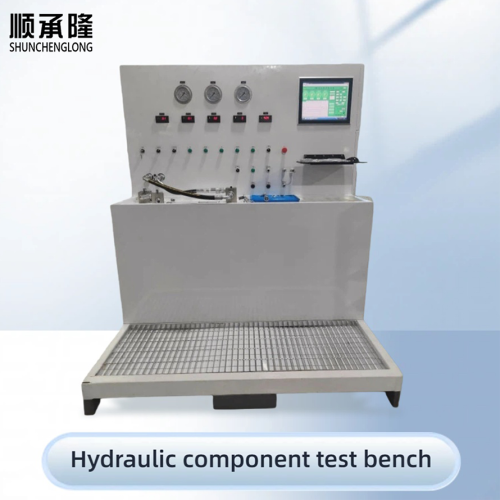

| System Name | Advanced Hydraulic Component Evaluation System | Calibration standard compatible with local hydraulic industry acceptance criteria |
| Test Pressure Range | 0 ~ 42 MPa | Pressure sensor with local certification option; supports unit switching: bar / psi / MPa |
| Flow Test Range | 0.5 ~ 200 L/min | Adapted for local mainstream hydraulic components including gear pumps, proportional valves and hydraulic motors |
| Pressure Control Accuracy | ±0.2% FS | High precision hydraulic testing system core module; stable under local factory ambient temperature fluctuation (5~45℃) |
| Data Acquisition Frequency | 100 Hz | Supports data export format required by local third-party inspection institutions |
| Test Operating Mode | Automatic / Manual / Cyclic fatigue test | Localized HMI interface, multi-language option for on-site operators |
| Power Supply | 380V / 415V, 50Hz | Power configuration matches factory power supply of target market |
| Working Medium | Hydraulic oil ISO VG 32 / VG 46 | Compatible with widely available hydraulic fluid in regional market |
| Protection Grade | IP54 | Dust and splash resistance for typical local workshop environment |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Hydraulic component OEM factory | Batch factory inspection of hydraulic pumps, valves and motors | Manual testing takes 25 mins per piece; 3.2% measurement deviation | Cut single-piece test time down to 7 mins; reduce test deviation to ≤0.2% FS; support continuous 16-hour non-stop testing |
| Hydraulic system integrator | Pre-delivery validation for assembled hydraulic units | Unable to record full test curve; hard to provide quality reports for end clients | Auto-generate standardized test reports; save 1000+ groups of test data; support one-click export for client review |
| Third-party hydraulic testing laboratory | Independent performance & durability certification for hydraulic components | Old testing machinery has poor repeatability; fail to meet local audit requirements | Precision hydraulic testing system delivers repeatability ≤0.15%; 20+ standard test programs preloaded to match local certification requirements |
| Hydraulic repair & overhaul workshop | Fault diagnosis and performance verification of repaired hydraulic components | Difficult to reproduce working pressure conditions; hidden defects easily missed | Simulate real working load conditions; detect internal leakage with sensitivity of 0.1 L/min; reduce post-repair failure rate by 41% |
Jawaban: Mendukung pengujian kinerja dan kelelahan untuk pompa hidrolik, motor hidrolik, katup kontrol tekanan, katup arah dan silinder hidrolik, yang mencakup sebagian besar komponen hidrolik utama untuk mesin konstruksi, industri dan pertanian.
Jawaban: Ya. Kami menyediakan perakitan di lokasi, kalibrasi sistem, dan pelatihan pengoperasian langsung selama 2 hari untuk tim teknis Anda. Dukungan teknis jarak jauh tersedia 24/7 setelah commissioning.
Jawaban: Urutan pengujian khusus dan templat laporan tersedia. Tim teknik kami dapat memodifikasi logika pengujian agar sesuai dengan standar pengujian produk unik Anda.
Hubungi tim teknik kami hari ini untuk mendapatkan penawaran khusus dan video demonstrasi sistem untuk proyek pengujian hidraulik Anda. Kirimkan persyaratan pengujian komponen Anda, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
