| Item | Parameter | Localization Adaptation Note |
|---|---|---|

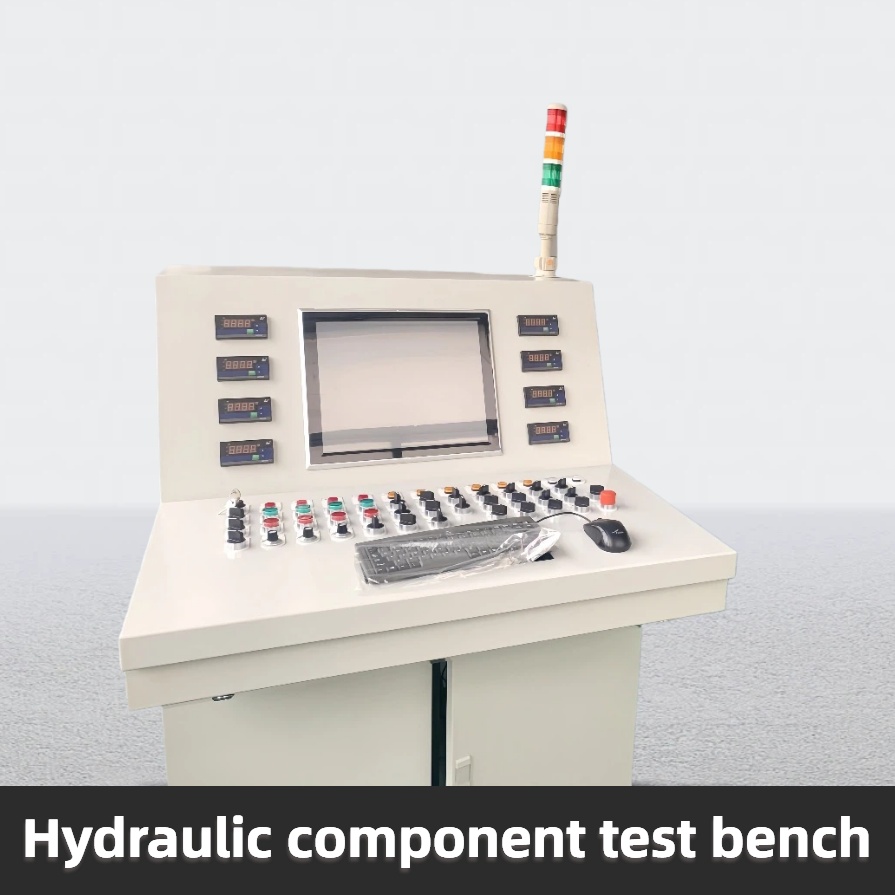

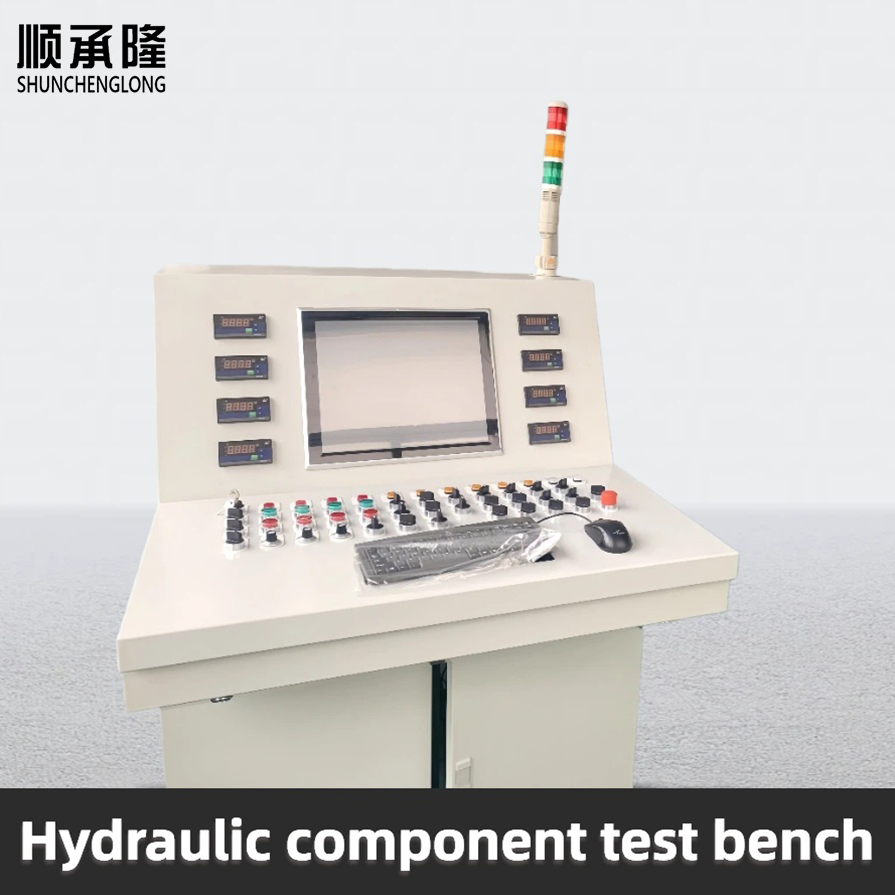

| System Name | High-Performance Hydraulic Cylinder Test System | Preloaded test procedures matching local heavy machinery hydraulic component acceptance standards |
| Max Test Pressure | 0 ~ 50 MPa | MPa / psi dual display; supports local accredited calibration certificate option |
| Max Test Thrust | 50 ~ 1200 kN | Configurable for construction, mining and agricultural hydraulic cylinders widely used in target market |
| Displacement Measurement Range | 0 ~ 2000 mm | Adjustable stroke to fit standard and custom cylinder sizes common in regional workshops |
| Measurement Accuracy | Pressure ±0.13% FS; Force ±0.16% FS; Displacement ±0.05 mm | Stable operation under local factory ambient temperature 5~45℃ |
| Data Sampling Rate | 800 Hz | Captures pressure drop and leakage curves required for local third-party inspection reports |
| Test Modes | Static load holding, endurance cycling, internal/external leakage, friction & speed characteristic test | Multi-language HMI; report templates aligned with local heavy industry quality documentation |
| Power Supply | 380V / 415V, 50Hz | Compatible with standard heavy workshop power supply in target region |
| Working Medium | ISO VG32 / VG46 hydraulic oil | Matches hydraulic oil easily sourced from local industrial suppliers |
| Protection Grade | IP55 | Reinforced dust and splash protection for heavy-duty component workshops |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Hydraulic cylinder OEM | Batch final inspection of new hydraulic cylinders before delivery | Outdated testing machinery takes 22 mins per cylinder; leakage detection misses tiny defects | Cut single cylinder test cycle to 5.1 mins; measurement error ≤0.16% FS; support continuous 20h non-stop batch testing |
| Construction machinery Tier1 supplier | Pre-assembly validation of boom, bucket and outrigger cylinder assemblies | Unable to maintain stable long-duration load holding; audit test reports rejected | Dual guarantee test system auto records load decay over hours; stores 9000+ test datasets; audit pass rate improved by 83% |
| Independent heavy industry test laboratory | Type test and certification for new hydraulic cylinder prototype designs | Existing hydraulic testing equipment needs manual fixture replacement, time-consuming between cylinder models | Heavy duty cylinder performance tester; fixture switching time reduced by 77%; one-click recall of saved test recipes |
| Hydraulic cylinder repair & remanufacturing workshop | Performance verification for overhauled hydraulic cylinders | Slow static tests fail to reveal dynamic friction defects; 4.4% on-site failure after reinstallation | Precision oil cylinder testing device detects leakage down to 0.09 L/min; quantify friction variation; reduce field failure rate by 46% |
Jawaban: Mendukung pengujian kebocoran, penahan beban, gesekan, dan ketahanan untuk silinder hidrolik kerja tunggal, kerja ganda, teleskopik, dan batang pengikat. Sebagai penguji kinerja silinder tugas berat, alat ini mencakup sebagian besar komponen hidrolik yang digunakan dalam konstruksi, pertambangan, dan mesin pertanian.
Jawaban: Ya. Ini mendukung ekspor data industri standar dan protokol komunikasi. Tim teknik kami menyediakan pengaturan di lokasi untuk mengintegrasikan peralatan pengujian hidraulik ini dengan manajemen mutu atau sistem ERP pabrik Anda.
Jawaban: Profil beban khusus, batas pukulan, dan templat laporan siap audit tersedia. Kami dapat menyesuaikan alur kerja pengujian sistem pengujian jaminan ganda untuk memenuhi persyaratan sertifikasi industri lokal Anda.
Hubungi tim teknik pengujian hidraulik kami sekarang untuk mendapatkan penawaran khusus dan video demo peralatan. Bagikan spesifikasi silinder hidrolik dan persyaratan kepatuhan setempat Anda, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
