| Item | Specification | Localization Adaptation Note |
|---|---|---|

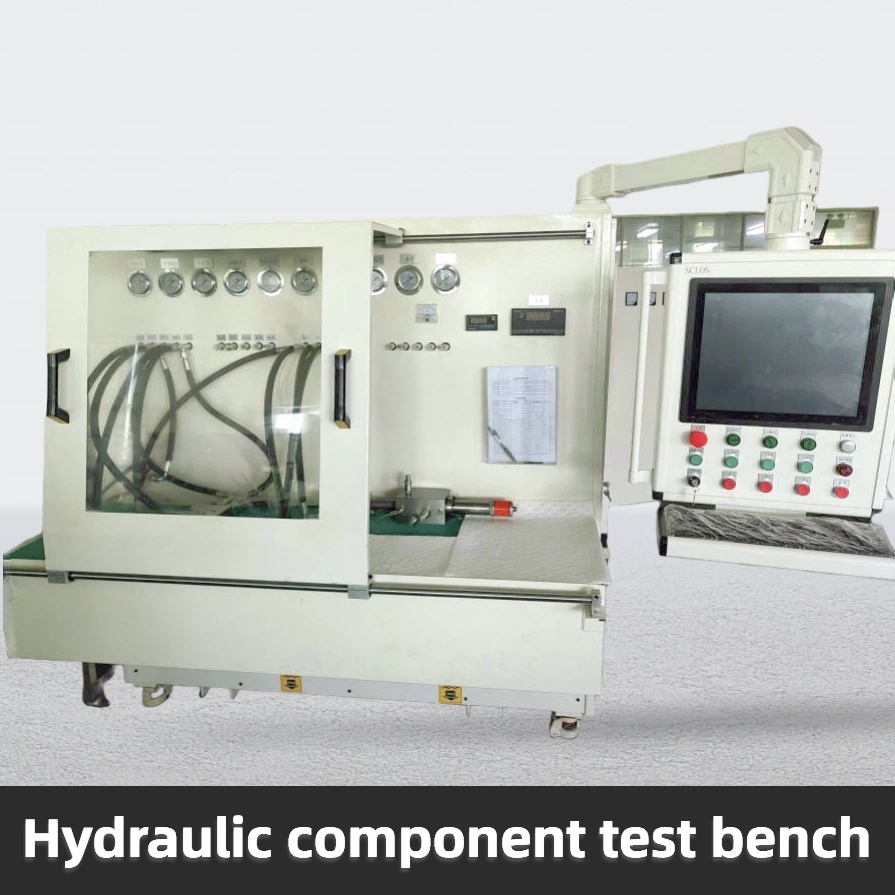

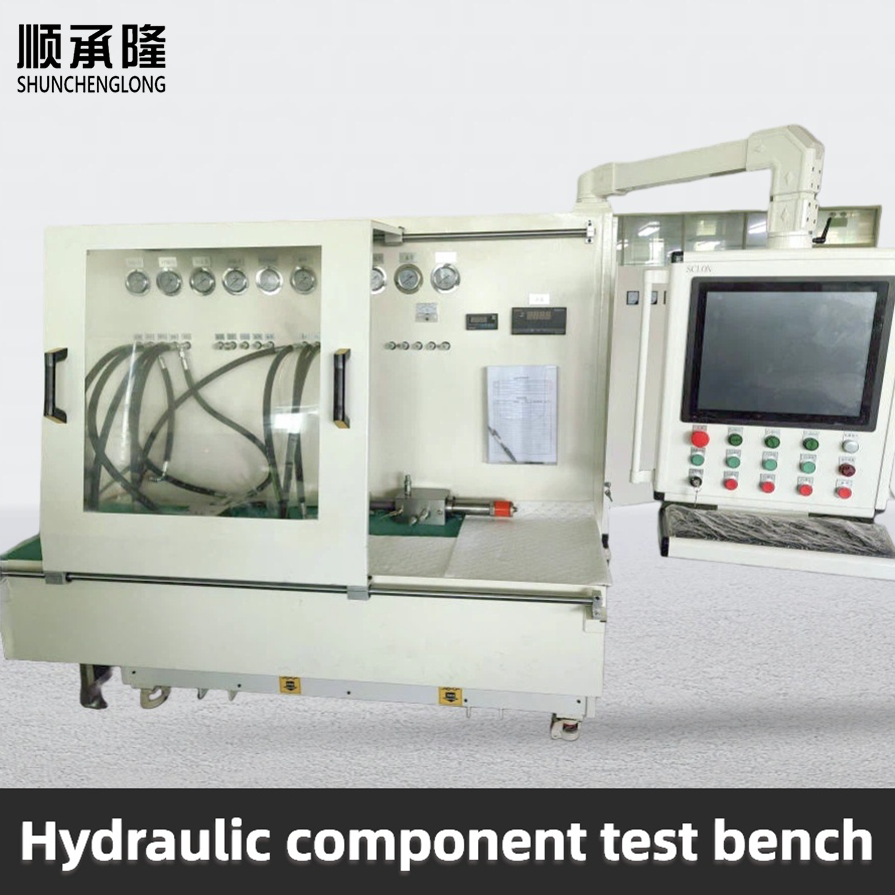

| Product Name | Precision Testing Equipment for Hydraulic Pump Controllers | Designed to comply with local machinery safety & quality audit standards |
| Test Pressure Range | 0 ~ 35 MPa, stepless adjustment | Pressure sensors calibrated for local factory ambient temperature drift |
| Signal Test Range | 0–10V / 4–20mA analog signal, CAN bus communication | CAN protocol compatible with mainstream local hydraulic pump controller models |
| Precision Grade | Pressure ±0.15%FS; Electrical signal ±0.1%FS | Core hardware of Pump controller testing machine |
| Control Mode | PLC + industrial touchscreen, automatic test sequence / manual debug | UI supports multi-language; unit toggle MPa/PSI, bar/psi |
| Power Supply | 380V / 415V 3-phase, 50Hz | Power module stabilised for regional grid voltage fluctuations |
| Testable Parts | Hydraulic pump controllers, proportional control units, load sensing controllers | Full-featured Hydraulic control unit test bench for hydraulic components |
| Safety Protection | Overpressure, overcurrent, short-circuit, oil overheat emergency stop | Safety interlock meets local industrial equipment regulation |
| Data Export | CSV / PDF test report, real-time curve & signal log | Report template ready for local ISO quality audit documentation |
| Local B2B Buyer Type | Application Scenario & Local Pain Points | Product Quantitative Advantages |
|---|---|---|
| Hydraulic Pump Controller Manufacturer | Production line offline QC. Old testing machinery cannot capture transient signal spikes; 21% of controllers pass static test but fail in field dynamic load. | Detect 97% of transient signal faults; cut controller field failure rate by 29%; single test cycle reduced from 9 min to 3.2 min. |
| Construction Machinery Aftermarket Refit Shop | Repair & recalibrate used pump controllers for excavators and loaders. Generic hydraulic testing equipment cannot simulate variable load conditions, missed hidden control drift. This Oil pump controller testing solution solves dynamic load simulation. | Simulate variable working load up to 35MPa; calibration repeatability ≤0.12%; reduce customer on-site breakdown complaints by 34%. |
| Hydraulic R&D Institute / Prototype Lab | New proportional pump controller development. Manual test setup causes inconsistent test conditions, long iteration cycles. Pump controller testing machine for prototype validation. | Auto-run multi-stage load test sequences; cut prototype validation time by 38%; record CAN bus data for failure traceability. |
| Third-party Hydraulic Quality Inspection Lab | Independent product certification for hydraulic components. Generic benches lack standardized signal logging required for local audit. Hydraulic control unit test bench for certification tests. | Auto-generate traceable audit-ready reports; continuous 24-hour stable operation; test deviation controlled within ±0.15%. |
Q1: Komponen hidraulik apa yang dapat diuji oleh peralatan pengujian hidraulik ini?
J: Ini terutama menguji pengontrol pompa hidrolik, unit kontrol proporsional, dan modul kontrol sensor beban. Sebagai mesin pengujian pengontrol pompa dan bangku pengujian unit kontrol hidraulik, mesin pengujian ini memeriksa respons tekanan, sinyal analog, dan komunikasi bus CAN dalam solusi pengujian pengontrol pompa oli kami.
Q2: Dapatkah bangku ini cocok dengan protokol komunikasi pengontrol pompa hidrolik yang populer secara lokal?
J: Ya. Sistem ini mendukung bus CAN umum dan sinyal analog 4-20mA / 0-10V yang banyak diadopsi oleh merek pompa hidrolik lokal. Anda dapat mengganti unit pengukuran dan mengekspor laporan siap audit agar sesuai dengan dokumentasi kualitas lokal.
Q3: Layanan purna jual apa yang disertakan dengan Peralatan Pengujian Presisi untuk Pengontrol Pompa Hidraulik?
J: Kami menyediakan perakitan, kalibrasi, dan pelatihan teknis 2,5 hari di lokasi untuk operator Anda. Paket ini mencakup garansi perangkat keras selama 12 bulan dan dukungan pemecahan masalah jarak jauh untuk semua alur kerja pengujian komponen hidrolik.
Hubungi tim teknik hidraulik kami untuk mendapatkan penawaran khusus dan lembar data lengkap tentang Peralatan Pengujian Presisi untuk Pengontrol Pompa Hidraulik. Pesan demo langsung peralatan pengujian hidraulik ini untuk memvalidasi komponen hidraulik Anda pada mesin pengujian pengontrol pompa kami. Kami dapat menyesuaikan bangku uji unit kontrol Hidraulik dan solusi pengujian pengontrol pompa oli sesuai dengan spesifikasi pengontrol dan standar pengujian pabrik Anda. Kirimkan persyaratan tes Anda hari ini.
