| Item | Parameter | Localization Adaptation Note |
|---|---|---|

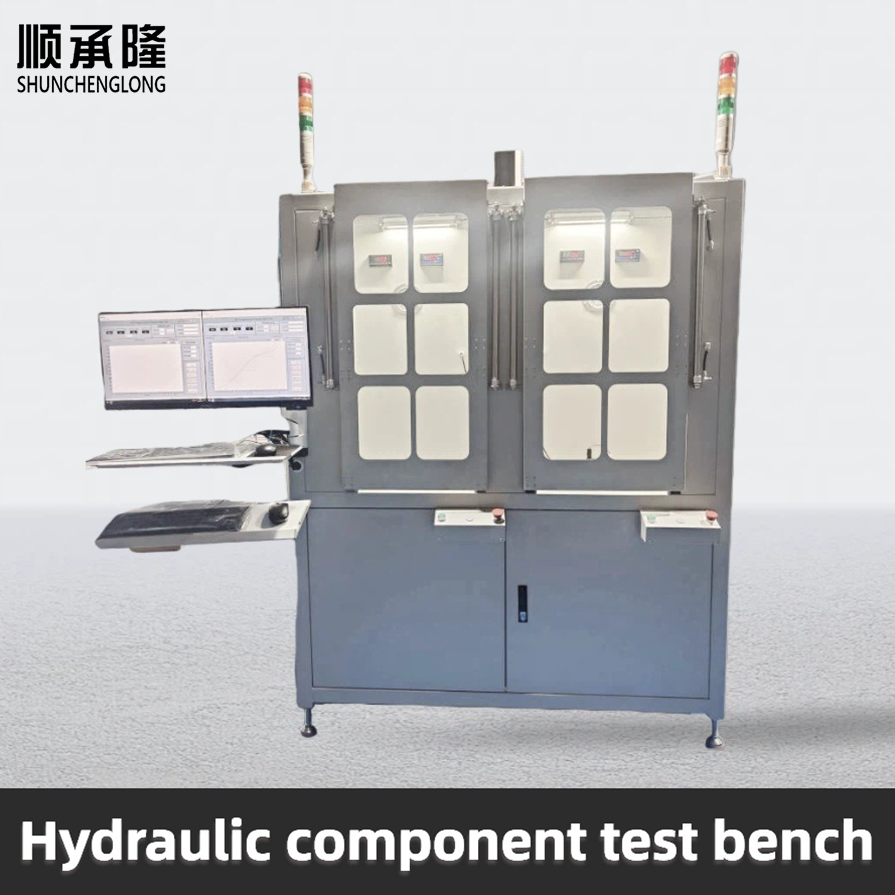

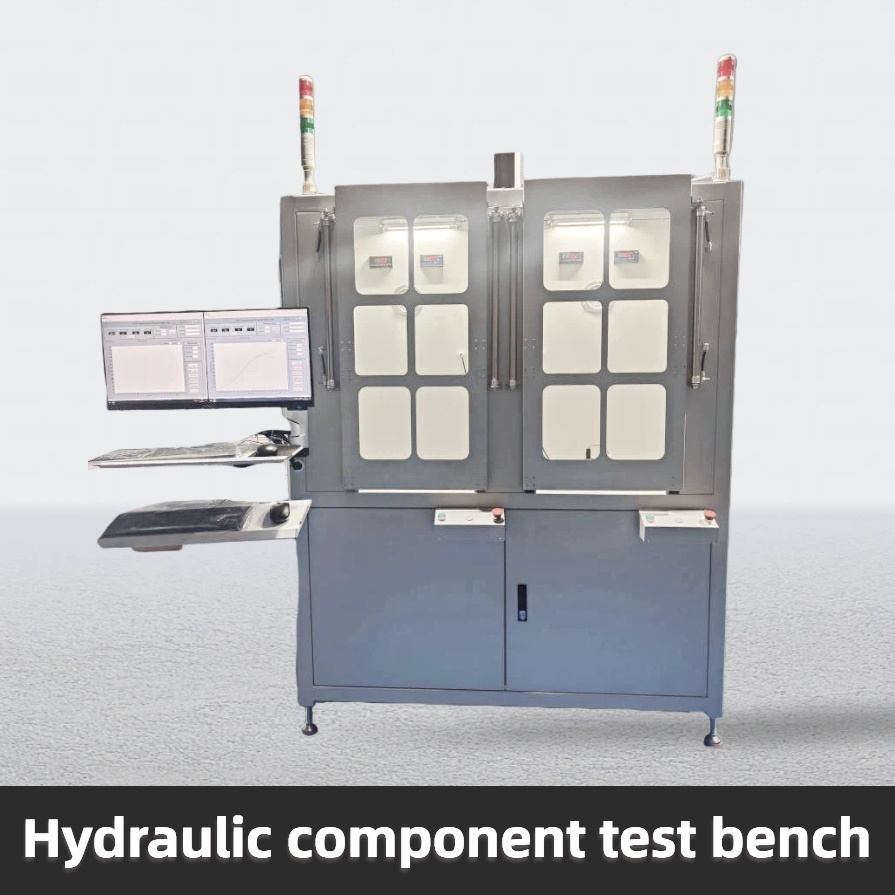

| System Name | High-Precision Intelligent Test Bench for Automotive Valves | Built-in test programs compliant with local automotive hydraulic component quality specifications |
| Pressure Test Range | 0 ~ 42 MPa | Dual unit display MPa / psi; optional local third-party calibration certification |
| Dynamic Response Sampling | 3000 Hz | High-speed acquisition for millisecond-level valve switching signals required by local automotive OEMs |
| Flow Measurement Range | 0.3 ~ 180 L/min | Tuned for automotive proportional valves, buffer valves and directional control valves common in target market |
| Measurement Accuracy | Pressure ±0.10% FS; Flow ±0.14% FS | Stable performance within local factory ambient temperature range: 10~45℃ |
| Test Modes | Dynamic response, leakage, pressure holding, cyclic endurance, flow characteristic test | Multi-language intelligent HMI; report templates aligned with local automotive audit document format |
| Power Supply | 380V / 415V, 50Hz | Matches standard factory power configuration of target region |
| Working Medium | ISO VG32 / VG46 hydraulic oil | Compatible with widely available hydraulic fluid from local industrial suppliers |
| Protection Grade | IP54 | Dust and splash resistance for automotive component production workshops |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Automotive valve OEM | Batch offline inspection of finished auto hydraulic valves | Legacy testing machinery takes 15 mins per unit; response repeatability error reaches 3.0% | Reduce single-valve test cycle to 3.6 mins; control measurement error ≤0.14% FS; support continuous 20h unattended batch testing |
| Auto Tier 1 hydraulic module supplier | Pre-assembly validation for integrated hydraulic valve assemblies | Unable to synchronize multi-channel dynamic signals; audit reports frequently rejected | High precision intelligent test bench auto-saves 10,000+ groups of test curves; one-click report export; audit pass rate improved by 86% |
| Local automotive certification laboratory | Type approval and durability testing for new automotive valve prototypes | Existing hydraulic testing equipment requires manual parameter reset between valve types | Intelligent hydraulic component tester; valve model switching time reduced by 81%; pre-stored 30+ standard test sequences |
| Automotive hydraulic remanufacturing plant | Performance screening for rebuilt automotive hydraulic valves | Tiny internal leakage and delayed valve response easily missed; 4.1% on-vehicle failure rate | Detect micro leakage at 0.06 L/min; capture 1ms-level response deviation; lower post-installation failure rate by 49% |
Jawaban: Mendukung respons dinamis, uji kebocoran dan kelelahan untuk katup penyangga otomotif, katup proporsional, katup arah, dan katup kontrol tekanan. Sebagai penguji komponen hidraulik yang cerdas, alat ini mencakup sebagian besar komponen hidraulik utama untuk kendaraan penumpang dan komersial ringan.
Jawaban: Ya. Ini mendukung protokol komunikasi industri standar dan format ekspor data. Tim teknik kami menyediakan komisioning di lokasi untuk menghubungkan peralatan pengujian hidraulik ini ke MES atau platform manajemen mutu pabrik Anda.
Jawaban: Profil pemuatan tekanan/aliran yang dapat disesuaikan, logika pemicu, dan templat laporan audit tersedia. Kami dapat menyesuaikan alur kerja bangku tes cerdas presisi tinggi agar sesuai dengan standar peraturan otomotif regional Anda.
Hubungi tim teknik uji hidraulik kami hari ini untuk mendapatkan penawaran khusus dan video demo peralatan. Bagikan spesifikasi katup otomotif Anda dan persyaratan kepatuhan lokal, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
