| Item | Specification | Localization Adaptation Note |
|---|---|---|

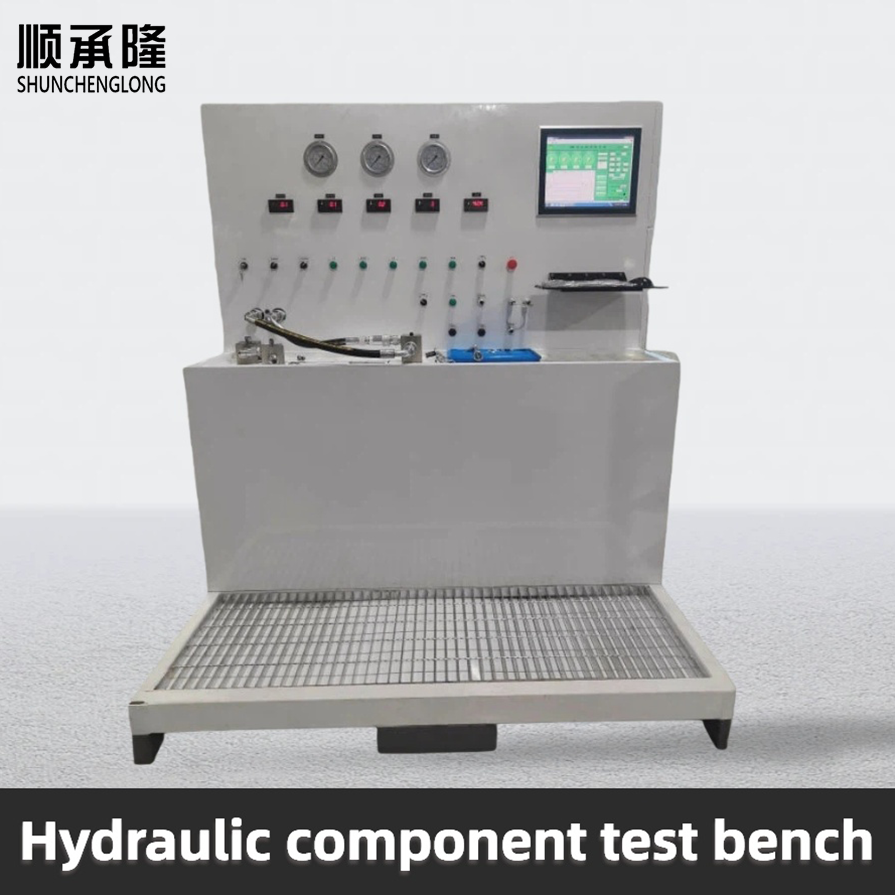

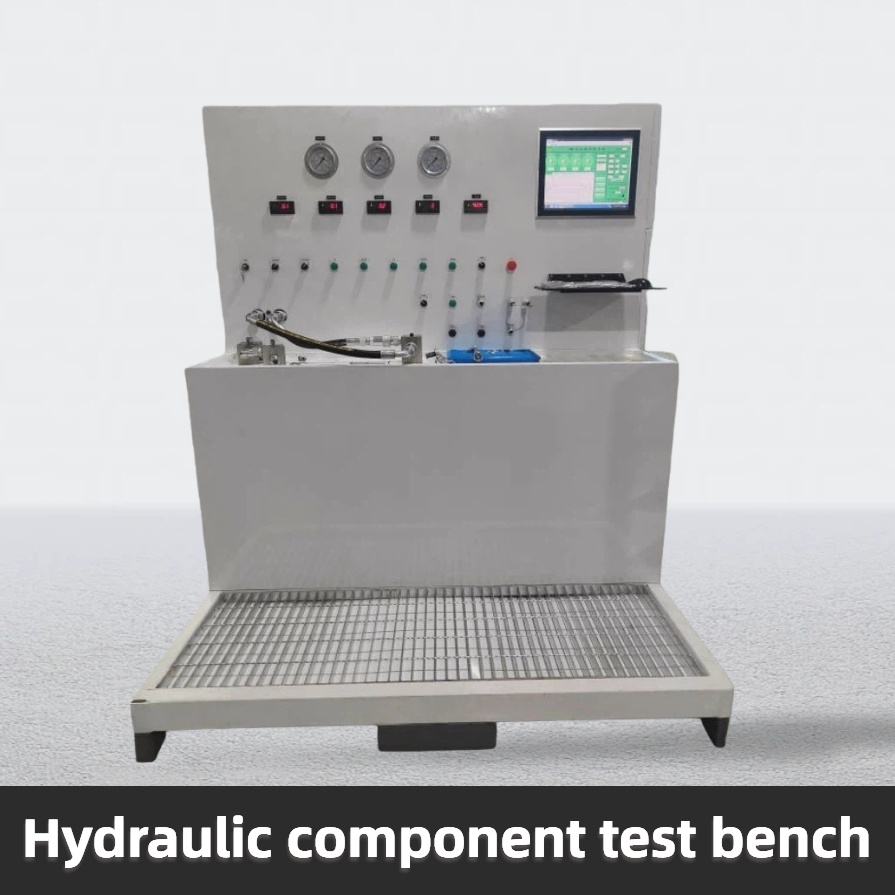

| Product Name | High-Precision Hydraulic Component Testing System | Configured to match local industrial power & safety certification standards |
| Test Pressure Range | 0 ~ 42 MPa, continuous adjustable | Pressure sensor calibrated for local ambient temperature fluctuation |
| Flow Measurement Range | 0.5 ~ 300 L/min | Flow meter compatible with local hydraulic oil viscosity grades |
| Precision Grade | Pressure accuracy ±0.2%FS; Flow accuracy ±0.3%FS | High precision hydraulic component tester core sensor assembly |
| Control Mode | PLC + Industrial touch screen, automatic/manual dual mode | UI supports local language option; units switch between MPa/PSI, LPM/GPM |
| Power Supply | 380V/415V 3-phase, 50Hz | Power circuit adapted for regional factory power grid fluctuation |
| Testable Workpieces | Hydraulic valves, gear pumps, piston pumps, hydraulic cylinders | Works as Hydraulic valve all purpose test bench for multi-type hydraulic components |
| Safety Protection | Overpressure, over-temperature, oil leakage emergency stop | Complies with local machinery safety regulations for testing machinery |
| Data Export | CSV/PDF report, real-time curve recording | Report template meets local factory quality audit requirements |
| Local B2B Buyer Type | Application Scenario & Local Pain Points | Product Quantitative Advantages |
|---|---|---|
| Hydraulic Components Manufacturer | Mass production offline inspection; local clients complain of inconsistent valve performance leading to field failure. Traditional testing machinery has ±1.0% error, high product reject rate. | Reduce component reject rate by 28%; test cycle shortened from 12 min to 4 min per workpiece; ±0.2% pressure precision. |
| Construction Machinery Repair & Refurbishment Plant | Rebuild hydraulic parts for excavators, loaders. Old test rigs cannot simulate actual working load; hidden defects missed before delivery. This construction machinery hydraulic test system addresses load simulation gaps. | Simulate dynamic working load up to 42MPa; detect 96% of latent hydraulic component faults; cut on-site after-sales return by 32%. |
| Third-Party Hydraulic Lab / Certification Institute | Need traceable test data for product certification. Generic hydraulic testing equipment lacks standardized report output for local audit. | Auto-generate audit-ready PDF test records; repeat test deviation ≤0.15%; support batch sample continuous 24h running. |
| Hydraulic Valve R&D Engineering Team | New valve prototype performance verification; unstable manual reading causes repeated R&D trials. High precision hydraulic component tester for R&D validation. | Automatic curve recording; 35% reduction in prototype testing time; real-time data cloud backup option. |
Q1: Komponen hidraulik apa yang dapat diperiksa oleh peralatan pengujian hidraulik ini?
A: Mendukung katup hidrolik, pompa piston, pompa roda gigi dan silinder hidrolik. Bekerja sebagai bangku uji serba guna katup Hidraulik, mesin pengujian ini dapat menyelesaikan uji kebocoran, penahan tekanan, dan kinerja aliran. Ini juga dapat bertindak sebagai sistem uji hidrolik mesin konstruksi untuk inspeksi bagian hidrolik mesin tugas berat.
Q2: Dapatkah penguji komponen hidraulik presisi tinggi ini beradaptasi dengan daya pabrik lokal dan jenis oli?
J: Ya. Sistem ini mendukung daya tiga fase 380V/415V 50Hz. Sensor dikalibrasi untuk kekentalan oli hidraulik umum setempat. Sistem unit dapat beralih secara bebas antara metrik dan imperial untuk menyesuaikan kebiasaan dokumentasi kualitas lokal.
Q3: Apakah pemasangan di lokasi dan pelatihan operator termasuk dalam Sistem Pengujian Komponen Hidraulik Presisi Tinggi?
J: Ya. Kami menyediakan perakitan di tempat, kalibrasi, dan pelatihan langsung selama 2 hari untuk teknisi Anda. Kami juga memberikan garansi 12 bulan dan dukungan teknis jarak jauh untuk semua operasi pengujian komponen hidrolik.
Hubungi tim teknik kami sekarang untuk mendapatkan penawaran khusus dan lembar data teknis untuk Sistem Pengujian Komponen Hidraulik Presisi Tinggi. Jadwalkan demo langsung peralatan pengujian hidraulik ini untuk memvalidasi komponen hidraulik Anda dengan penguji komponen hidraulik presisi tinggi kami. Tim kami dapat menyesuaikan bangku uji serba guna katup Hidraulik dan sistem uji hidraulik mesin konstruksi sesuai dengan spesifikasi benda kerja Anda. Kirimkan persyaratan tes Anda hari ini.
