| Specification Item | Technical Parameter | Local Market Adaptation Notes for EU / North America |
|---|---|---|
| Product Model Series | SCLON‑CTB‑100 / SCLON‑CTB‑250 / SCLON‑CTB‑400 | Conforms to ISO‑10100 hydraulic cylinder test standard; supports CE‑required test‑report output for local hydraulic components certification |
| Max Test Cylinder Force | 100 kN / 250 kN / 400 kN (customizable) | Covers strength‑calibration requirements for light‑to‑heavy‑duty cylinders widely used in regional industrial machinery |
| Test Pressure Range | 0‑420 bar, closed‑loop servo pressure control | Servo closed‑loop control meets strict acceptance criteria for local hydraulic testing equipment quality‑audit documentation |
| Pressure Measurement Accuracy | ±0.25 % FS (Full Scale) | High‑precision sensor satisfies metrology traceability requirements for European and North‑American component‑certification labs |
| Displacement Measuring Range & Accuracy | 0‑2000 mm；±0.02 mm resolution | Captures tiny cylinder‑deformation data during strength‑calibration cycles for Hydraulic actuator testing equipment validation |
| Test Modes | Static strength test, burst‑pressure pre‑test, fatigue cyclic test, leakage inspection, stiffness calibration | One‑station multi‑function setup, reduces capital expenditure versus purchasing separate testing machinery units |
| Data Output Interface | Ethernet / RS485; CSV / PDF auto‑generated test reports | Export‑ready reports for CE technical files; compatible with local factory MES / quality‑management systems |

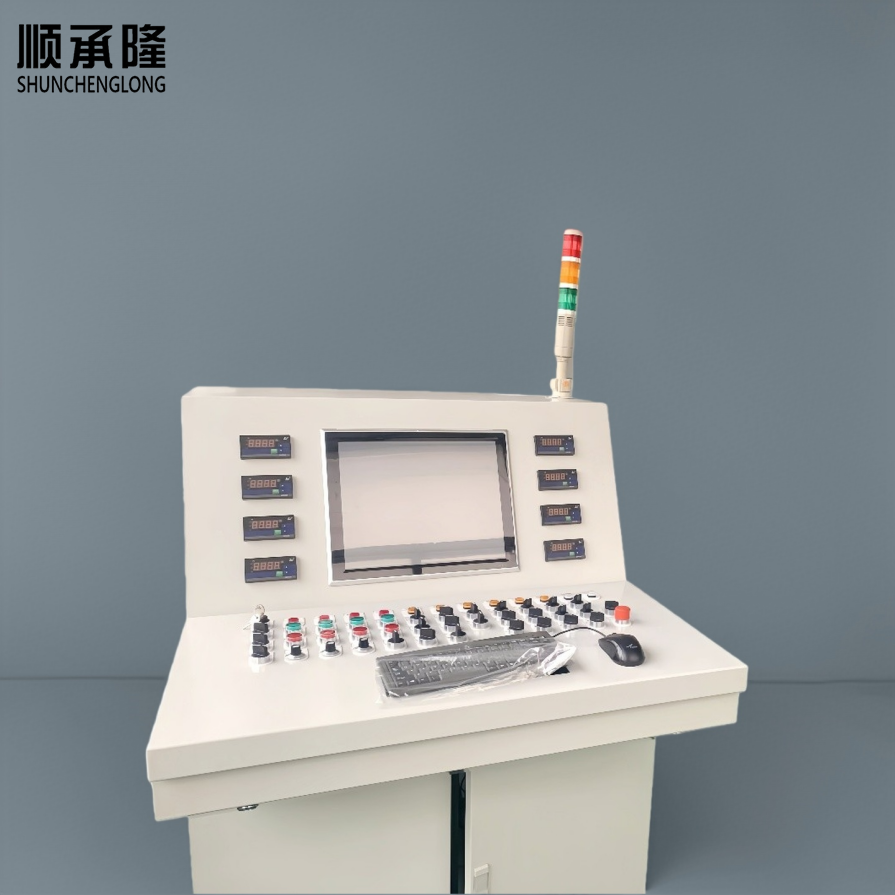

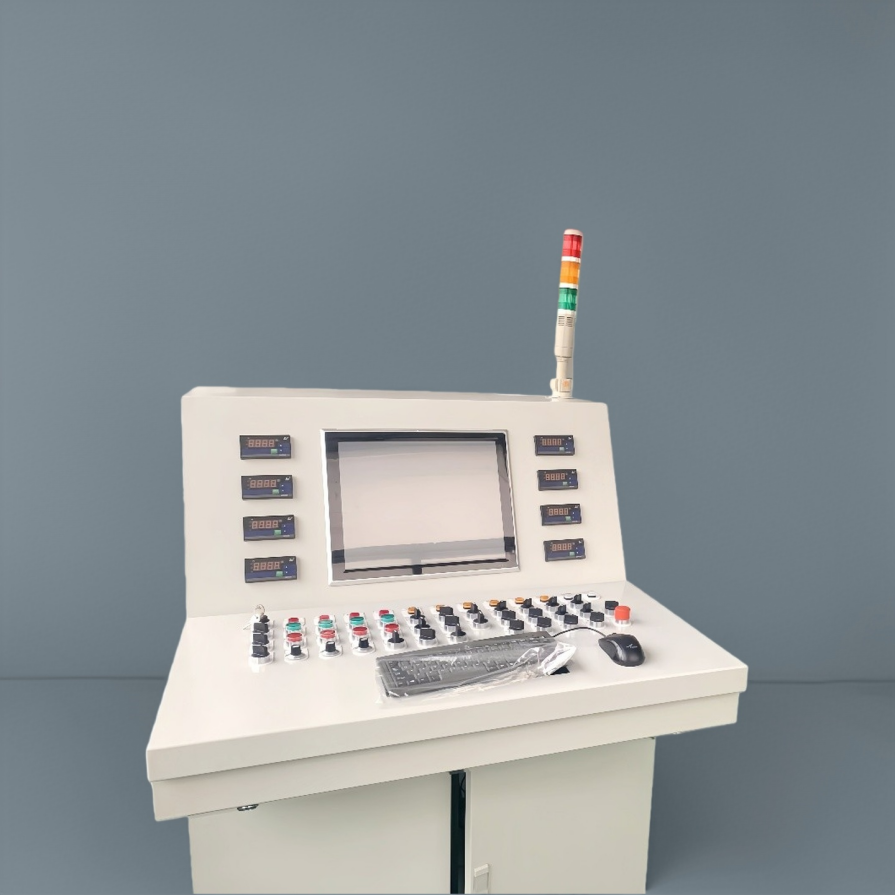

| Control System | Industrial PLC + HMI touch‑screen; customizable test recipe storage | Pre‑configured standard test templates for mainstream Hydraulic component calibration system workflows; supports multi‑language UI (English / German / Spanish) |
| Working Environment | Ambient temp: 5‑45 °C; Humidity ≤85 % non‑condensing | Adapted to typical factory‑floor quality‑lab conditions in North‑American and EU manufacturing plants |
| Power Supply | 380‑480 V 3‑phase AC 50/60 Hz | Matches standard factory power grids across Europe and North‑America; no extra power‑transformer modification required |
| Localized Application Scenario | B‑End Buyer Type | Regional Market Core Pain Points | Quantitative Product Advantages |
|---|---|---|---|
| Strength‑calibration & burst‑safety verification for mass‑produced industrial hydraulic cylinders | Hydraulic cylinder OEM & component manufacturer | Local cylinder producers rely on manual test rigs; large human‑reading deviation leads to inconsistent product‑certification reports for hydraulic components; risk of non‑compliance with CE requirements | 1. As Hydraulic cylinder test stand, pressure‑measurement accuracy reaches ±0.25 % FS；2. Auto‑generation of traceable PDF test reports cuts manual‑report‑writing labour by 82 %；3. Supports batch‑test‑recipe storage for high‑volume production‑line QC |
| R&D fatigue‑strength validation for custom heavy‑duty hydraulic actuators | R&D lab & engineering department of hydraulic solution supplier | Custom actuator development needs repeatable cyclic strength‑testing; third‑party lab testing incurs high outsourcing costs and long lead‑times for Hydraulic actuator testing equipment projects | 1. Executes up to 1 000 000‑cycle fatigue strength tests automatically；2. Displacement resolution ±0.02 mm captures micro‑deformation data；3. Shortens in‑house R&D verification cycle by 45 %, reduces third‑party‑lab outsourcing expense |
| In‑coming quality inspection for purchased hydraulic cylinder sub‑components | Machinery OEM purchasing‑quality‑control department | Equipment builders receive outsourced cylinders; existing generic hydraulic testing equipment cannot complete standardized strength‑calibration; undetected defective cylinders trigger field‑failure claims | 1. Pre‑loaded ISO‑10100 standard test sequences for fast incoming QC；2. Pass/fail automatic judgement function；3. Full‑test‑data traceability to defend against component‑quality‑related warranty claims |
| Third‑party component‑certification laboratory service | Independent test‑lab operator & testing machinery system integrator | Commercial calibration labs need versatile Hydraulic component calibration system to serve multiple clients with varied cylinder specifications; long re‑configuration time lowers lab throughput | 1. Quick‑change cylinder‑fixture adapters cover bore sizes 25‑200 mm；2. One‑switch‑over between static‑strength, leakage and fatigue‑test modes；3. Multi‑language report output meets documentation demands for multi‑national client projects |
A1: Ya. Tempat uji silinder Hidraulik ini termasuk dalam peralatan pengujian aktuator Hidraulik terintegrasi. Mendukung kekuatan statis, uji awal ledakan, pemeriksaan kebocoran, dan pengujian kelelahan siklik otomatis. Sebagai sistem kalibrasi komponen Hidraulik yang lengkap, sistem ini berfungsi untuk sebagian besar komponen hidraulik umum, dan dapat menggantikan beberapa mesin pengujian fungsi tunggal di dalam laboratorium QC.
A2: Ya. Sistem secara otomatis menghasilkan laporan pengujian CSV dan PDF yang diberi stempel waktu dengan pencatatan data sensor penuh. Keluaran laporan sesuai dengan standar ISO‑10100, menyediakan dokumentasi yang dapat ditelusuri yang diperlukan untuk file teknis CE. UI multi-bahasa dan templat laporan telah diinstal sebelumnya untuk alur kerja peralatan pengujian hidraulik lokal.
A3: Adaptor perlengkapan penggantian cepat menutupi lubang silinder 25‑200 mm untuk silinder industri umum. Gaya uji maksimal, panjang langkah, dan tata letak perlengkapan khusus tersedia berdasarkan permintaan. Bagikan rentang dimensi silinder dan persyaratan spesifikasi pengujian Anda, dan tim teknik kami akan mengusulkan solusi yang disesuaikan untuk proyek mesin pengujian komponen hidrolik Anda.
Mencari lembar data teknis lengkap, gambar tata letak, contoh templat laporan, atau kutipan untuk Meja Uji Silinder Hidraulik untuk Kalibrasi Kekuatan ini?
Silakan kirimkan kebutuhan Anda: gaya uji maksimal, rentang langkah silinder, mode pengujian utama yang Anda perlukan, dan kondisi tegangan suplai pabrik. Tim penjualan teknis B‑end kami akan membalas dalam waktu 24 jam kerja dan mengirimkan proposal dan penawaran harga yang dirancang khusus untuk peralatan pengujian hidraulik , komponen hidraulik , dan proyek mesin pengujian Anda.
