| Item | Parameter | Localization Adaptation Note |
|---|---|---|

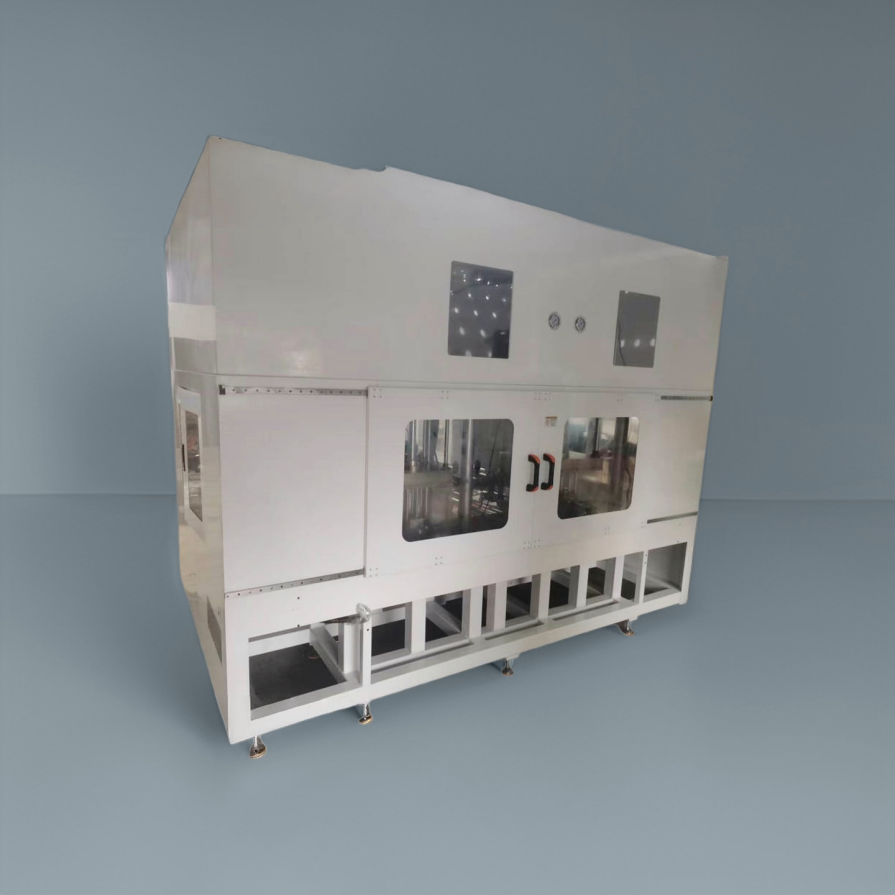

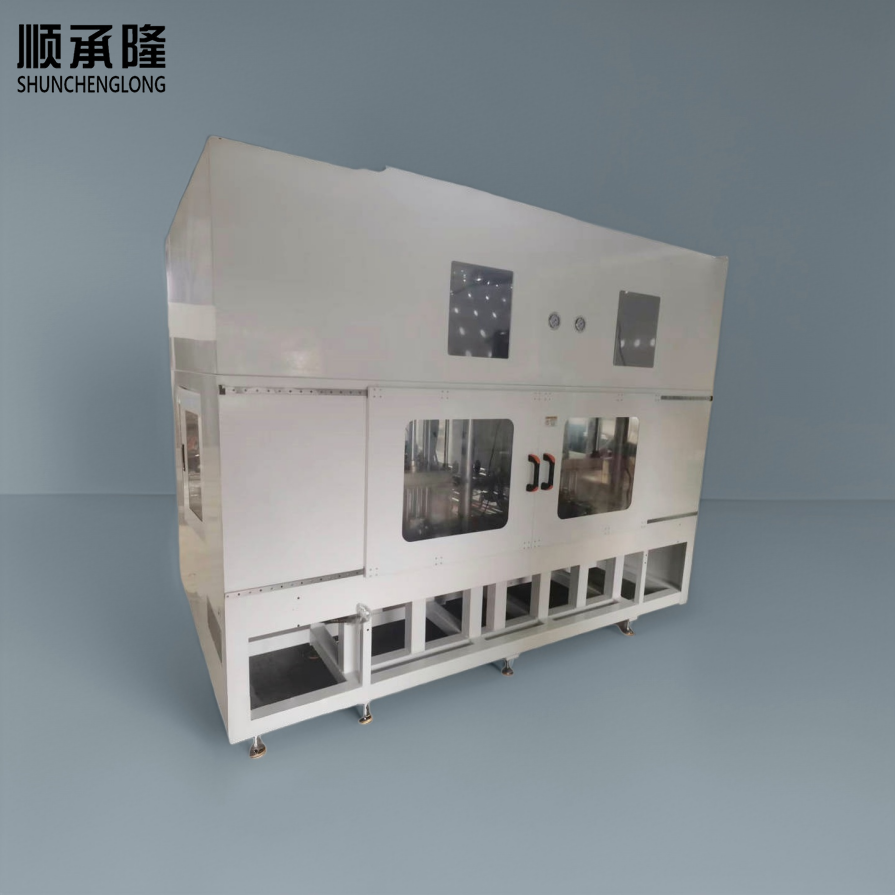

| Product Name | Automotive Buffer Valve Testing Equipment | Program preset to match local automotive component safety regulations |
| Test Pressure Range | 0 ~ 35 MPa | Dual unit display: MPa / psi; sensor available with local calibration certificate |
| Impact Response Test | 5ms ~ 200ms response capture | Tuned for automotive buffer valve fast transient pressure test required by regional auto OEMs |
| Damping Force Test Range | 200 ~ 15000 N | Matches passenger car, light commercial vehicle buffer valve specs popular in target market |
| Measurement Accuracy | ±0.15% FS | High stability under local factory ambient temperature 10~42℃ |
| Data Sampling Rate | 2000 Hz | High-speed sampling to record transient pressure spikes required for local third-party audit reports |
| Operation Mode | Manual / Automatic / Cyclic endurance test | Multi-language HMI; report templates aligned with local automotive quality document standards |
| Power Supply | 380V / 415V, 50Hz | Compatible with standard factory power supply in target market |
| Working Medium | ISO VG 32 / VG 46 hydraulic oil | Uses widely available hydraulic fluid sourced locally |
| Protection Grade | IP54 | Dust and splash protection for standard automotive component workshop environment |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Auto hydraulic component OEM | Batch quality inspection of buffer valves before shipment | Old testing machinery takes 14 mins per sample; 2.9% test inconsistency rate | Reduce single sample test cycle to 4.2 mins; lower test deviation ≤0.15% FS; support continuous 18h batch testing |
| Automotive system integrator | Pre-assembly validation for shock absorber buffer modules | Cannot capture millisecond-level pressure impulse; reports fail local OEM audit | High-speed sampling at 2000 Hz; auto-generate audit-ready test curves; store 5000+ test records |
| Third-party automotive test laboratory | Type approval & safety certification for new buffer valve designs | Existing hydraulic testing equipment lacks repeatability; long setup time for different valve models | Hydraulic System Safety Calibrator with 22 preloaded test routines; model switching time cut by 76% |
| Auto parts repair & remanufacturing factory | Performance screening for remanufactured buffer valves | Hidden damping defects missed in static tests; 3.7% post-installation field failure rate | Simulate real road impact load; detect abnormal damping threshold at 0.2% force variation; reduce field failure rate by 44% |
Jawaban: Mendukung karakteristik redaman, dampak tekanan dan uji kelelahan untuk mobil penumpang dan katup penyangga kendaraan komersial ringan, yang mencakup sebagian besar komponen hidrolik utama yang digunakan dalam rakitan peredam kejut.
Jawaban: Ya. Ini mendukung protokol ekspor data standar dan dapat terhubung dengan mesin pengujian Anda yang ada. Tim kami menyediakan penyesuaian antarmuka agar sesuai dengan sistem manajemen mutu pabrik Anda.
Jawaban: Urutan pengujian, ambang batas gaya/tekanan, dan templat laporan yang dapat disesuaikan tersedia. Teknisi kami dapat menyetel Kalibrator Keamanan Sistem Hidraulik sesuai dengan spesifikasi peraturan setempat.
Hubungi tim teknis kami sekarang untuk mendapatkan penawaran khusus dan video demo peralatan untuk proyek pengujian katup penyangga otomotif Anda. Bagikan spesifikasi komponen dan persyaratan sertifikasi lokal Anda, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
