| Specification Item | Technical Parameter | Local Market Adaptation Notes for EU / North America |
|---|---|---|

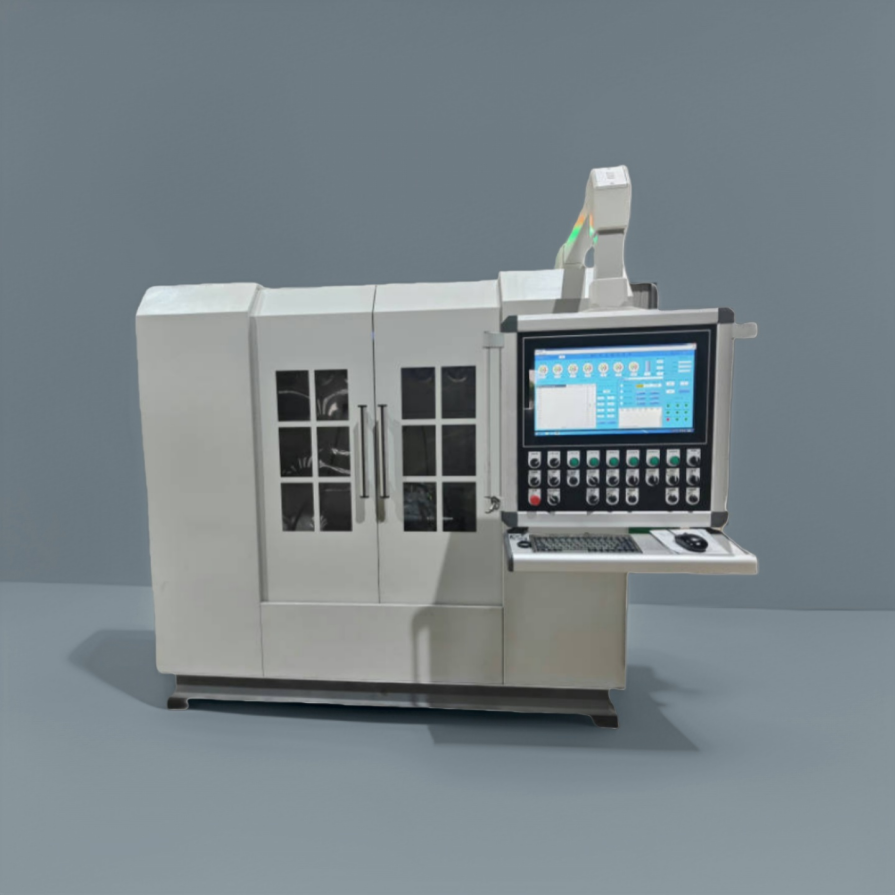

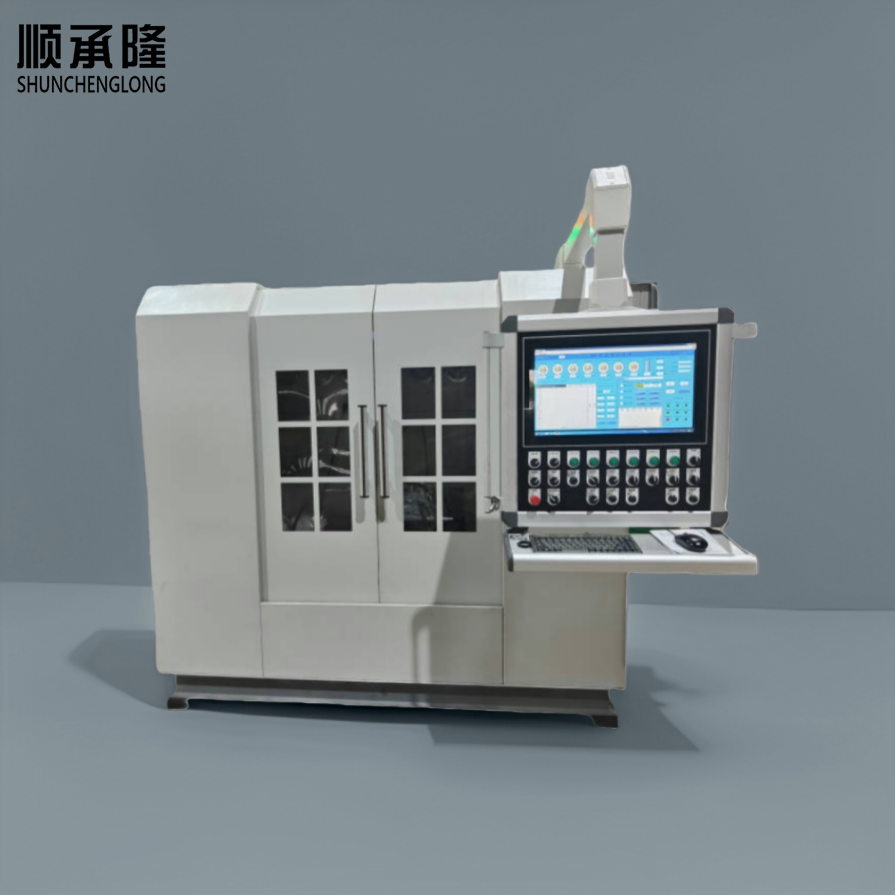

| Product Model Series | SCLON‑CHTS‑350 / SCLON‑CHTS‑450 | Aligns with ISO 4409, ISO 6405 international hydraulic test standards; generates audit‑compliant reports for CE certification of local hydraulic components |
| Supported DUT Categories | Hydraulic pumps, motors, cylinders, valves, manifold assemblies | Modular interchangeable test modules includes configurable Hydraulic Motor Test Bench sub‑unit, covers mainstream industrial component portfolio for regional factories |
| Max System Test Pressure | 0‑350 bar closed‑loop servo regulation | Matches pressure rating of widely‑used European and North‑American industrial hydraulic hardware for Hydraulic Equipment Performance Test |
| Adjustable System Flow Range | 5‑280 L/min stepless variable flow | Supports both low‑flow miniature components and high‑flow heavy‑duty unit for flexible Hydraulic System Testing workflows |
| Measurement Precision | Pressure ±0.2 % FS; Flow ±0.3 % FS; Torque ±0.25 % FS; Temperature ±0.15 °C | Traceable‑grade sensors satisfying metrology requirements for third‑party lab certification work |
| Main Test Modules & Functions | Efficiency test, durability cyclic test, leakage detection, response characteristic, load simulation, system power consumption analysis | Unified platform eliminates the need to purchase many separate pieces of testing machinery |
| Data Communication & Export | Gigabit‑Ethernet; Auto‑generate CSV / PDF test logs; API available for MES connection | Timestamp‑complete datasets compatible with local factory quality‑management systems |
| Human‑Machine Interface | Industrial PLC + multi‑language touch‑HMI (EN / DE / FR / ES); editable test‑recipe library | Pre‑loaded standard test templates for quick deployment of each test module |
| Working Environment | Ambient temperature: 5‑45 °C; Humidity ≤85 % non‑condensing | Designed for R&D laboratories and mass‑production QC workshops in western manufacturing facilities |
| Power Supply | 380‑480 V 3‑phase AC 50 / 60 Hz | Compatible with standard industrial power grids across EU & North‑America, no extra transformer required |
| Localized Application Scenario | B‑End Buyer Type | Regional Market Core Pain Points | Quantitative Product Advantages |
|---|---|---|---|
| Multi‑category component QC for full‑range hydraulic product lines | Full‑line hydraulic OEM & component manufacturer | Local manufacturers must purchase multiple independent hydraulic testing equipment for pumps, motors, valves and cylinders; high capital expenditure and long module re‑configuration time for different hydraulic components | 1. Integrated platform supports swap‑in modules including Hydraulic Motor Test Bench；2. Module switch‑over time reduced by 81 % versus discrete test rigs；3. Unified report format simplifies batch‑quality‑data archiving for Hydraulic Equipment Performance Test |
| R&D verification of complete assembled hydraulic power unit | Hydraulic system designer & solution supplier | Assembled power‑pack validation requires separate component‑level and system‑level assessment; splitting between component test benches and system‑level rigs delays development cycles for Hydraulic System Testing | 1. Realises both discrete‑component test and whole‑power‑pack system simulation on one station；2. System‑level power‑consumption & heat‑rise test available；3. Shortens complete prototype validation cycle by 44 % |
| In‑house incoming‑goods inspection for multi‑sourced outsourced hydraulic parts | Machinery OEM quality‑control department | Equipment builders source mixed batches of outsourced pumps, motors and valves; single‑function testing machinery cannot handle diverse part types; undetected defective parts trigger expensive field‑failure claims | 1. Quick‑swap fixture groups adapt to multi‑type incoming parts；2. Pre‑configured fast‑QC test recipes；3. Full traceable test logs for quality‑dispute evidence retention |
| Multi‑purpose shared‑test platform for commercial third‑party test laboratory | Independent test‑service lab & system integration contractor | Commercial labs need flexible multi‑purpose capacity to serve varied client orders; purchasing many dedicated single‑function benches creates low‑utilisation capital‑asset waste | 1. Modular architecture enables on‑demand activation of Hydraulic Motor Test Bench, valve‑test and cylinder‑test modules；2. Pay‑per‑use module licensing optional；3. Multi‑language report output for cross‑border client certification projects |
Q1: Objek uji apa yang dapat didukung oleh Solusi Pengujian Peralatan Hidraulik Komprehensif? Apakah ini termasuk kapasitas pengujian motorik?
A1: Ya. Solusi ini dilengkapi dengan modul yang dapat ditukar termasuk Hydraulic Motor Test Bench. Ini menyelesaikan Uji Kinerja Peralatan Hidraulik tingkat komponen untuk pompa, motor, katup, silinder, dan suku cadang manifold, ditambah Pengujian Sistem Hidraulik seluruh unit untuk paket daya hidraulik rakitan. Alat ini dapat menggantikan beberapa peralatan pengujian hidraulik tujuan tunggal yang tersebar dan mesin pengujian untuk beragam komponen hidraulik.
Q2: Dapatkah platform pengujian komprehensif ini menghasilkan laporan standar untuk memenuhi persyaratan audit sertifikasi CE UE?
A2: Ya. Sistem menghasilkan laporan pengujian CSV dan PDF format terpadu yang diberi stempel waktu dan sesuai dengan ISO 4409 dan ISO 6405. Semua data pengukuran dapat dilacak sepenuhnya untuk pengiriman file teknis CE. HMI multi-bahasa dan templat laporan telah diinstal sebelumnya untuk alur kerja lab Eropa dan Amerika Utara.
Q3: Apakah konfigurasi modularnya fleksibel? Bisakah saya hanya membeli modul fungsional tertentu dan bukan platform penuh pada pembelian awal?
A3: Platform ini mendukung penerapan modular investasi bertahap. Anda dapat memulai dengan host inti ditambah modul prioritas Anda (misalnya hanya Bangku Uji Motor Hidraulik dan modul uji katup), dan kemudian memperluas modul pengujian tambahan tanpa mengganti perangkat keras utama. Harap berikan daftar objek pengujian utama dan parameter kinerja Anda untuk proposal yang dirancang khusus untuk proyek mesin pengujian komponen hidrolik Anda.
Butuh lembar data teknis lengkap, gambar tata letak, panduan pemilihan modul, atau kutipan formal untuk Solusi Pengujian Peralatan Hidraulik Komprehensif ini?
Silakan kirimkan kebutuhan Anda: jenis DUT utama, rentang torsi aliran tekanan yang diperlukan, modul pengujian prioritas, dan kondisi pasokan daya pabrik setempat. Tim penjualan teknis B‑end kami akan membalas dalam waktu 24 jam kerja dan mengirimkan proposal & penawaran teknis yang disesuaikan untuk peralatan pengujian hidraulik, komponen hidraulik, dan proyek mesin pengujian Anda.
