| Specification Item | Technical Parameter | Local Market Adaptation Notes for EU / North America |
|---|---|---|

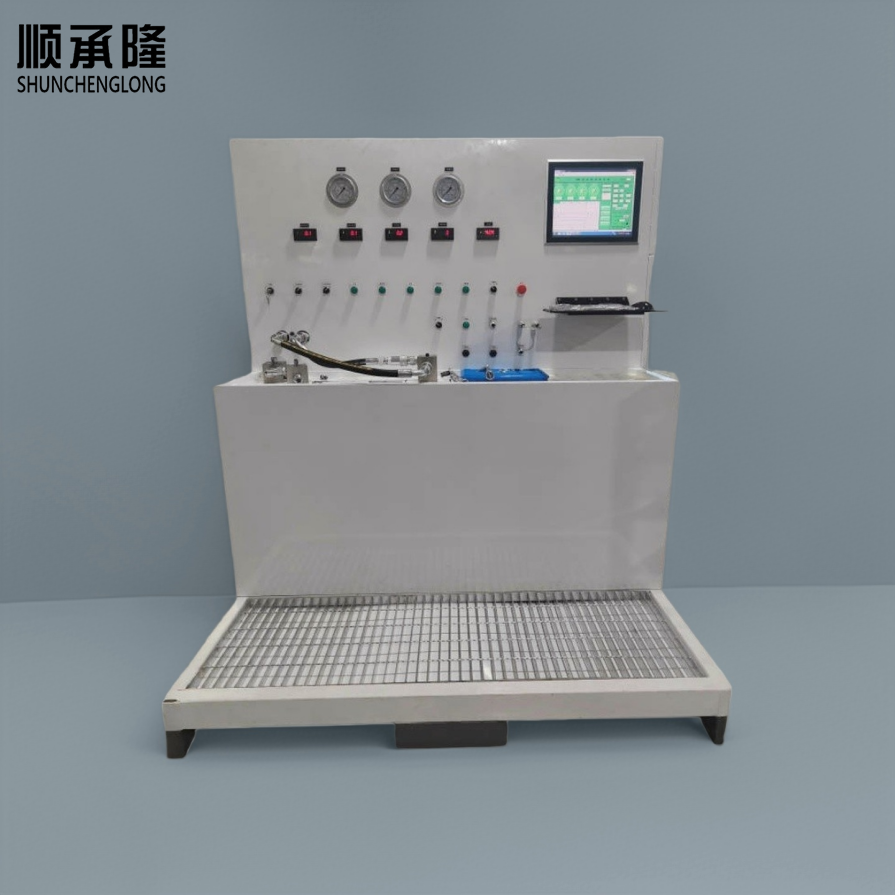

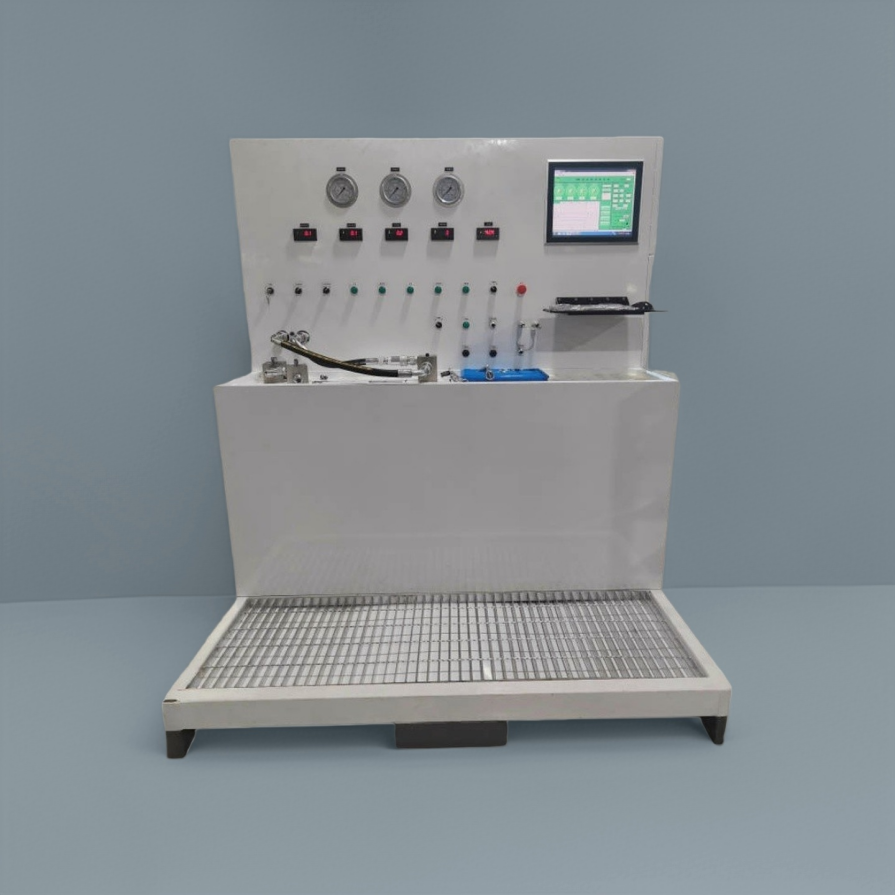

| Product Model Series | SCLON‑VTS‑200 / SCLON‑VTS‑400 | Complies with ISO 6405 hydraulic‑valve test‑standard; generates audit‑ready test records for CE certification of local hydraulic components |
| Rated Test Pressure | 0‑420 bar, closed‑loop servo pressure regulation | Covers pressure‑rating range of industrial, proportional and safety valves widely deployed in western industrial machinery |
| Max Test Flow | 2‑250 L/min, stepless adjustable flow control | Supports performance evaluation for miniature cartridge valves up to large‑size main directional valves on this Hydraulic test bench for valves |
| Measurement Accuracy | Pressure: ±0.2 % FS；Flow: ±0.3 % FS；Temperature: ±0.15 °C | High‑precision sensor group satisfies metrology traceability requirements for EU and North‑American component certification labs |
| Supported Valve Test Items | Leakage test, pressure‑resistance test, response‑time test, flow‑characteristic test, fatigue cyclic test, relief‑valve pressure‑setting calibration | All‑in‑one station removes need for multiple discrete testing machinery units for valve‑evaluation workflows |
| Media Compatibility | HLP mineral oil, HEES biodegradable hydraulic fluid | Works with eco‑friendly hydraulic fluids commonly required by EU environmental‑compliant factories |
| Data‑Export & Communication | Ethernet, RS485；Auto‑generate CSV / PDF timestamped test reports | Report data compatible with local factory MES and quality‑management databases for Hydraulic system test stand workflows |
| Control & Operation | Industrial PLC + multi‑language touch‑HMI (EN / DE / FR / IT); editable test recipe library | Pre‑loaded standard ISO test templates; quick‑swap valve‑fixture modules for this Hydraulic valve testing setup |
| Working Environment | Ambient temperature:5‑45 °C；Humidity ≤85 % non‑condensing | Matches typical QC‑lab and R&D‑lab environmental conditions of overseas manufacturing plants |
| Power Supply | 380‑480 V 3‑phase AC 50 / 60 Hz | Fits standard factory power grids in EU and North‑America, no additional transformer modification required |
| Localized Application Scenario | B‑End Buyer Type | Regional Market Core Pain Points | Quantitative Product Advantages |
|---|---|---|---|
| Full‑performance evaluation for mass‑produced industrial hydraulic valves | Hydraulic‑valve OEM & component manufacturer | Local valve factories deploy several separated hydraulic testing equipment; frequent fixture change‑over wastes production QC time; incomplete test‑data affects CE certification of hydraulic components | 1. This Hydraulic test bench for valves integrates 6 core valve‑evaluation test items on single station；2. Quick‑change fixture modules cut valve‑model switching time by 79 %；3. Auto‑output ISO‑compliant PDF test reports for batch‑quality traceability |
| R&D characteristic‑curve testing for new‑developed proportional & cartridge valves | Hydraulic R&D laboratory & valve‑design engineering team | New‑valve development demands repeatable flow‑pressure curve acquisition; outsourcing measurement to external labs brings high expense and long lead‑time for Hydraulic system test stand projects | 1. Stepless adjustable flow 2‑250 L/min captures complete flow‑pressure characteristic curves；2. Response‑time sampling rate up to 10 kHz records micro‑second‑level valve‑switching action；3. Shortens in‑house valve‑R&D validation cycle by 47 %, reduces third‑party lab outsourcing cost |
| Incoming quality spot‑check for outsourced valve sub‑assemblies | Machinery OEM quality‑control department | Machine builders source external valve parts; generic testing machinery cannot complete multi‑item valve‑evaluation; hidden valve defects lead to expensive field‑warranty claims | 1. Saved pre‑configured fast‑execution QC test‑suites for incoming‑batch inspection；2. Automatic pass/fail judgement function；3. Full‑timestamped test logs to provide evidence for quality‑dispute handling |
| Modular test‑system integration for independent commercial test laboratories | Third‑party test‑lab operator & system integrator | Commercial calibration labs need versatile Hydraulic valve testing setup to serve diversified client valve‑types; slow re‑configuration reduces daily‑test throughput | 1. Modular fixture‑bank supports cartridge, directional, relief and proportional valves；2. User‑editable test‑recipe library adapts for custom client‑spec test requirements；3. Multi‑language report output serves multi‑national component‑certification projects |
A1: Ya. Meja uji Hidraulik untuk katup ini berfungsi sebagai tempat uji sistem Hidraulik terintegrasi dan pengaturan pengujian katup Hidraulik yang fleksibel. Mesin ini menyelesaikan uji kebocoran, ketahanan tekanan, waktu respons, karakteristik aliran, dan siklus kelelahan, menggantikan beberapa mesin pengujian terpisah. Ini banyak digunakan untuk validasi R&D dan QC berbagai komponen hidrolik.
A2: Ya. Sistem secara otomatis menghasilkan laporan CSV dan PDF dengan stempel waktu sesuai spesifikasi pengujian katup ISO 6405. Semua data tekanan, aliran, suhu, dan urutan waktu dicatat sepenuhnya untuk penyerahan file teknis CE. HMI multi-bahasa dan templat laporan telah diinstal sebelumnya untuk alur kerja peralatan pengujian hidraulik lokal.
A3: Platform ini menggunakan arsitektur perlengkapan quick-swap modular. Kami menawarkan perlengkapan yang dirancang khusus, rentang aliran tekanan yang dapat disesuaikan, dan pengembangan resep pengujian khusus untuk kebutuhan katup khusus. Silakan bagikan rentang dimensi katup dan spesifikasi pengujian lengkap Anda untuk mendapatkan penawaran khusus untuk proyek mesin pengujian komponen hidraulik Anda.
Butuh lembar data teknis lengkap, gambar tata letak umum, contoh file laporan pengujian, atau kutipan resmi untuk Sistem Pengujian Hidraulik Komprehensif untuk Evaluasi Katup ini?
Silakan kirimkan kebutuhan Anda: rentang aliran tekanan target, jenis katup utama yang sedang diuji, item pengujian yang diperlukan, dan tegangan suplai pabrik setempat. Tim penjualan teknis B‑end kami akan membalas dalam waktu 24 jam kerja dan mengirimkan proposal & penawaran teknis yang disesuaikan untuk peralatan pengujian hidraulik, komponen hidraulik, dan proyek mesin pengujian Anda.
