| Item | Parameter | Localization Adaptation Note |
|---|---|---|

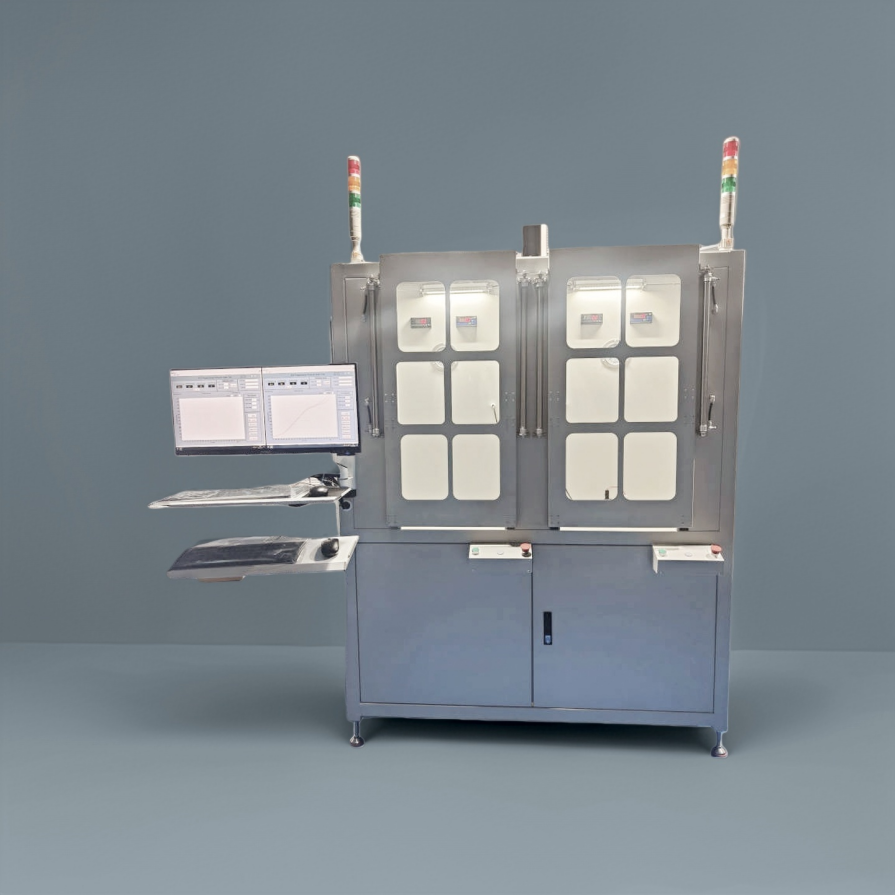

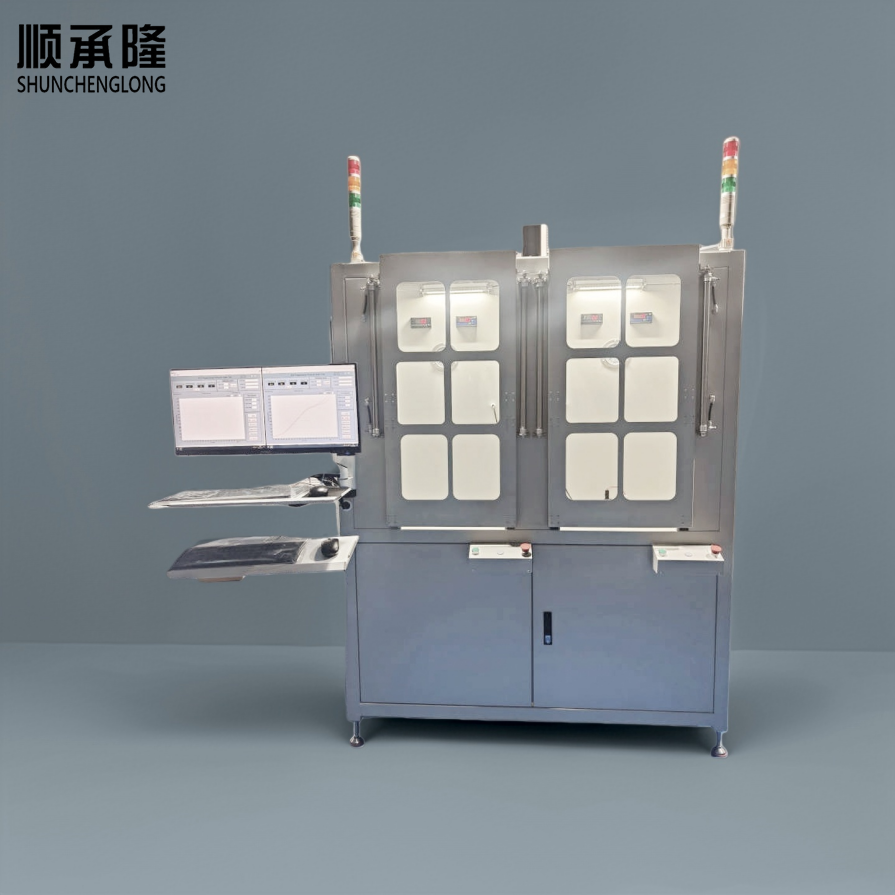

| System Name | Precision Valve Testing System for Automobiles | Preloaded test routines aligned with regional automotive hydraulic component acceptance criteria |
| Test Pressure Range | 0 ~ 40 MPa | MPa / psi dual display; optional locally accredited calibration certificate |
| Dynamic Sampling Frequency | 2800 Hz | High-speed capture of rapid valve switching events required by local auto OEM audit standards |
| Flow Test Range | 0.2 ~ 160 L/min | Optimized for proportional valves, pressure relief valves and buffer valves widely used in local passenger and light commercial vehicles |
| Measurement Accuracy | Pressure ±0.11% FS; Flow ±0.13% FS | Stable measurement under local factory ambient temperature: 10~44℃ |
| Available Test Modes | Dynamic response, pressure holding, internal leakage, fatigue cycle, flow characteristic test | Multi-language HMI; test report templates matching local automotive quality document formats |
| Power Supply | 380V / 415V, 50Hz | Compatible with standard factory power supply configuration in target market |
| Working Medium | ISO VG32 / VG46 hydraulic oil | Uses hydraulic fluid easily sourced from local industrial distributors |
| Protection Grade | IP54 | Dust and splash protection for automotive component assembly and testing workshops |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Automotive valve OEM | End-of-line batch inspection of finished auto hydraulic valves | Old testing machinery takes 14 mins per valve; dynamic response repeatability error reaches 2.8% | Cut single valve test cycle to 3.4 mins; measurement error ≤0.13% FS; support continuous 19-hour unattended batch testing |
| Automotive Tier 1 supplier | Pre-assembly validation of integrated hydraulic valve modules | Unable to synchronize pressure and flow signals; audit reports often rejected by vehicle OEMs | Valve testing system for cars automatically stores 9500+ test datasets; one-click curve export; audit pass rate increased by 84% |
| Local automotive certification laboratory | Prototype performance verification and type approval for new automotive valve designs | Existing hydraulic testing equipment requires manual parameter reset between different valve models | Valve testing machine for automobiles; valve type switching time reduced by 79%; 28 pre-configured standard test sequences |
| Auto hydraulic remanufacturing factory | Fault screening and performance validation of rebuilt hydraulic valves | Minor leakage and slow valve response cannot be detected by static testing; 3.9% post-installation field failure rate | Car valve diagnostic tool detects micro leakage at 0.05 L/min; capture millisecond-level response deviation; reduce field failure rate by 48% |
Produsen komponen otomotif Tier 2 regional yang memproduksi katup kontrol hidraulik dan katup penyangga, memasok komponen hidraulik ke pabrik perakitan kendaraan ringan lokal. Pabrik tersebut sebelumnya menggunakan mesin pengujian yang sudah ketinggalan zaman untuk pemeriksaan kinerja katup dan sering kali menghadapi penolakan kualitas dari pelanggan Tingkat 1.
Komentar klien: Sistem pengujian Valve kami untuk mobil bertindak sebagai mesin pengujian Valve yang andal untuk mobil. Alat diagnostik katup mobil bawaan meningkatkan peralatan pengujian hidraulik kami dan memastikan kualitas yang stabil untuk semua komponen hidraulik.
Jawaban: Ia melakukan uji respons dinamis, kebocoran, dan ketahanan untuk katup proporsional otomotif, katup penyangga, katup arah, dan katup pengatur tekanan. Sistem pengujian katup untuk mobil ini adalah alat diagnostik katup mobil serbaguna yang mencakup sebagian besar komponen hidrolik untuk mobil penumpang dan kendaraan komersial ringan.
Jawaban: Ya. Ini mendukung protokol komunikasi industri arus utama dan berbagai format ekspor data. Tim teknik kami menyediakan komisioning di lokasi untuk mengintegrasikan peralatan pengujian hidraulik ini dengan sistem manajemen mutu pabrik Anda.
Jawaban: Kurva pemuatan tekanan khusus, parameter pemicu, dan templat laporan siap audit dapat dikonfigurasi. Kami dapat menyesuaikan sistem pengujian Katup pada mobil agar sesuai dengan standar peraturan otomotif regional.
Hubungi tim teknik uji hidraulik kami hari ini untuk mendapatkan penawaran khusus dan video demo peralatan. Bagikan spesifikasi katup otomotif Anda dan persyaratan kepatuhan setempat, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
