| Item | Parameter | Localization Adaptation Note |
|---|---|---|

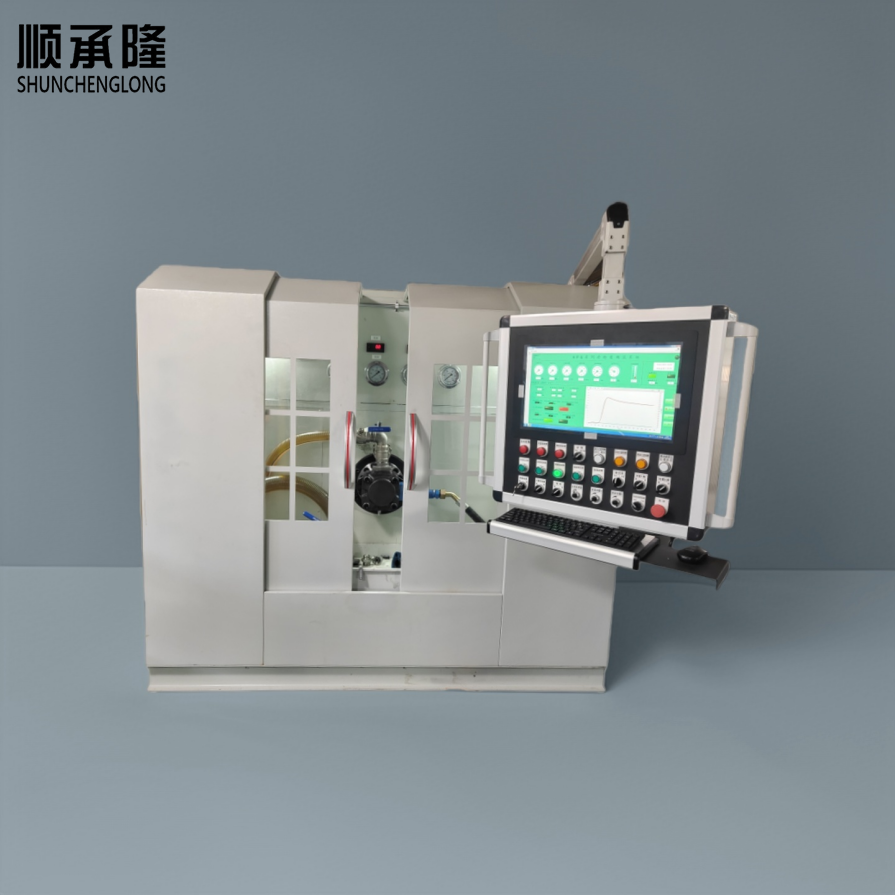

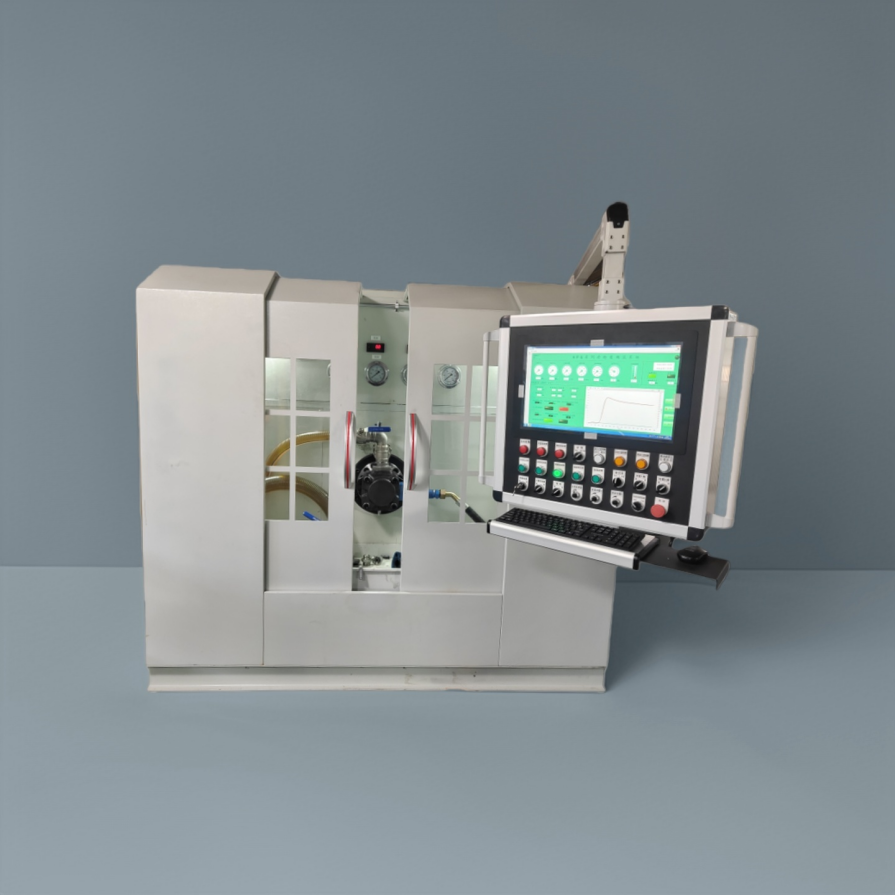

| System Name | High-Accuracy Testing System for Hydraulic Pumps | Pre-programmed test workflows compliant with local construction and agricultural machinery hydraulic component inspection criteria |
| Rated Test Pressure | 0 ~ 48 MPa | Dual-unit display MPa/psi; optional local third-party traceable calibration certificate |
| Flow Measuring Range | 1.5 ~ 220 L/min | Optimized for gear pumps, vane pumps and axial piston pumps widely used in the target market |
| Torque Measurement Range | 5 ~ 2000 N·m | Matches torque specifications of medium and large hydraulic pumps for mining, farm and construction machinery |
| Measurement Precision | Pressure ±0.11% FS; Flow ±0.14% FS; Torque ±0.16% FS | Maintains stable readings within local factory ambient temperature range of 8~44℃ |
| Data Sampling Frequency | 1200 Hz | Captures instantaneous flow pulsation required for local third-party certification reports |
| Test Modes | Volumetric efficiency, pressure overload, continuous fatigue, no-load & loaded leakage test | Multi-language touchscreen HMI; report templates aligned with local heavy industry audit standards |
| Power Supply | 380V / 415V, 50Hz | Matches standard industrial power supply configurations of local manufacturing plants |
| Working Fluid | ISO VG32 / VG46 hydraulic oil | Compatible with hydraulic oil readily available through local industrial supply chains |
| Protection Grade | IP54 | Dust and splash resistance for heavy-duty hydraulic component workshops |
| Target B-type Buyer | Local Application Scenario | Local Pain Points | Product Advantages (Quantitative Data) |
|---|---|---|---|
| Hydraulic pump OEM | Finished pump batch inspection before shipment | Legacy testing machinery takes 17 mins per unit; volumetric efficiency deviation reaches 3.2% | Reduce single pump test cycle to 4.1 mins; measurement deviation ≤0.16% FS; support 20-hour uninterrupted continuous batch testing |
| Heavy machinery Tier 1 supplier | Pre-delivery validation of integrated hydraulic power packs | Cannot record full pulsation curves; test documents often rejected by end OEM audits | hydraulic pump performance test stand automatically archives 7500+ test datasets; one-click curve export; audit approval rate raised by 85% |
| Independent industrial certification lab | Prototype type approval and durability assessment for new pump designs | Current hydraulic testing equipment needs manual parameter reset, long transition time between pump models | Testing station for hydraulic components; pump model switching time reduced by 80%; store 25+ pre-built standard test routines |
| Hydraulic equipment remanufacturing factory | Performance screening for overhauled hydraulic pumps | Subtle internal leakage ignored by static tests; 4.3% failure rate after field reinstallation | hydraulic pump test stand detects micro leakage at 0.06 L/min; quantifies volumetric efficiency; lower on-site failure rate by 47% |
Jawaban: Ini menjalankan uji efisiensi volumetrik, kelelahan dan kebocoran untuk pompa roda gigi, pompa baling-baling, dan pompa piston aksial. Tempat uji pompa hidrolik ini berfungsi sebagai stasiun pengujian untuk komponen hidrolik, mencakup sebagian besar komponen hidrolik yang digunakan dalam konstruksi, pertambangan dan mesin pertanian.
Jawaban: Ya. Ini mendukung protokol komunikasi industri arus utama dan berbagai format ekspor data. Tim teknik kami menyediakan komisioning di lokasi untuk mengintegrasikan peralatan pengujian hidraulik ini dengan platform manajemen mutu pabrik Anda.
Jawaban: Profil tekanan/beban khusus, rumus perhitungan, dan templat laporan siap audit tersedia. Kami dapat menyesuaikan stasiun Pengujian untuk alur kerja komponen hidrolik agar sesuai dengan persyaratan kepatuhan industri regional.
Hubungi tim teknik uji hidraulik kami hari ini untuk mendapatkan penawaran khusus dan video demonstrasi peralatan. Bagikan spesifikasi pompa hidrolik dan persyaratan sertifikasi lokal Anda, dan kami akan mengatur konsultasi teknis gratis dalam waktu 24 jam.
