| Item | Specification | Localization Adaptation Note |
|---|---|---|

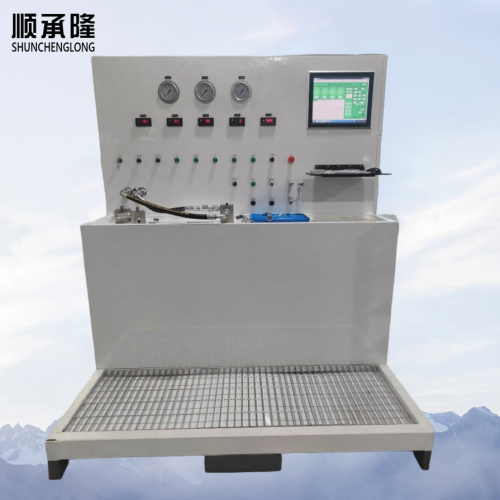

| Product Name | Advanced Hydraulic Valve Test Stand / High-end hydraulic valve test stand | Metric & imperial unit switching; test reports formatted to meet local high-pressure component certification standards |
| Brand | SCLON | Local technical service for fixture customization, system calibration and R&D team hands-on training |
| Test Pressure Range | 0 ~ 42 MPa | Hydraulic valve R&D test stand high-stability hydraulic power unit; adjustable pressure ramp for proportional, cartridge and servo hydraulic valves |
| Pressure Control Accuracy | ±0.03 MPa | Ultra-tight tolerance to satisfy local high-end hydraulic product certification audit requirements |
| Supported Test Items | Dynamic response test, hysteresis, flow linearity, static leakage, pressure setting, accelerated impulse fatigue test | Pre-built and fully editable test workflows for R&D characterization and mass production QC |
| Data Acquisition | High-speed sampling up to 1000Hz, real-time waveform plotting, auto PDF/CSV report export | High-frequency raw data saved for technical papers and third-party certification reviews |
| Power Supply | 380V/50Hz; optional 460V/60Hz | Dual power configuration compatible with industrial power grids across target regions |
| Control System | Industrial PLC + high-resolution touchscreen, fully programmable test profiles | Multi-language HMI available, supports complex custom test sequences for R&D engineers |
| Hydraulic Circuit | Servo proportional pressure & flow control module, low pulsation design | advanced hydraulic valve tester minimizes hydraulic noise interference during dynamic performance testing |
| Mechanical Frame | Heavy-duty welded steel frame, active vibration damping, sealed noise-reducing cabinet | Designed for long continuous operation inside high-end R&D labs and premium valve manufacturing workshops |
| Target Buyer Type | Local Application Scenario | Local Pain Point | Product Quantitative Advantages |
|---|---|---|---|
| High-End Hydraulic Valve OEM | End-of-line QC for servo and proportional hydraulic valves | Ordinary Industrial Valve Bench cannot capture fast dynamic response signals; 7~12% of subtle performance defects escape inspection | Our advanced hydraulic valve tester uses high-speed sampling; dynamic defect capture rate increased by 86%, delivering reliable Precision Valve Testing |
| Hydraulic R&D Engineering Institute | New hydraulic valve prototype development and dynamic characteristic research | Conventional test equipment has low sampling frequency; unable to record transient pressure spikes, slowing product iteration | Hydraulic valve R&D test stand 1000Hz high-speed data collection; dynamic signal fidelity improved by 91%, shortening prototype development cycles |
| Premium Hydraulic Component Rebuild Center | Re-certification of rebuilt servo and proportional valves for heavy machinery | Basic test rigs only run static leakage tests; cannot verify dynamic performance, leading to 6.8% post-service field failures | This High-end hydraulic valve test stand completes full static + dynamic validation; post-rebuild field failure rate reduced by 79% |
| Third-Party High-Pressure Testing Laboratory | Authorized certification testing for hydraulic valves used in energy and marine equipment | Standard Hydraulic Valve Test Bench lacks traceable high-frequency data; audit reviewers often request supplementary tests | Professional Valve Testing Solutions with timestamped high-speed data; additional audit retest requirement rate decreased by 70% |
Jawaban: Ya. Bangku Uji Katup Hidraulik ini dibuat untuk pengoperasian tujuan ganda. Sebagai tempat pengujian R&D katup Hidraulik yang canggih, ia dapat menjalankan karakterisasi dinamis yang kompleks dan beralih dengan cepat ke inspeksi QC batch standar, sehingga membentuk Solusi Pengujian Katup yang lengkap.
Jawaban: Modul pengambilan sampel berkecepatan tinggi 1000Hz menangkap perubahan tekanan dan aliran sementara yang terlewatkan oleh bangku tes biasa. Ini secara tepat mencatat histeresis katup, waktu respons, dan perilaku impuls, yang sangat penting untuk sertifikasi servo dan katup proporsional.
Jawaban: Ya. Tim teknik kami memberikan panduan pemrograman jarak jauh, pelatihan operator di lokasi, dan layanan kalibrasi. Kami membantu tim Anda membuat rangkaian pengujian khusus untuk prototipe katup baru dan menjaga kestabilan pengoperasian jangka panjang Bangku Katup Industri.
Mencari Solusi Pengujian Katup premium atau Bangku Uji Katup Hidraulik berkinerja tinggi untuk R&D katup dinamis dan QC produksi? Hubungi tim teknik kami hari ini. Bagikan spesifikasi katup dan persyaratan pengujian dinamis Anda, dan kami akan menyiapkan proposal dan penawaran teknis yang disesuaikan untuk tempat pengujian katup hidraulik kelas atas dan penguji katup hidraulik tingkat lanjut.
