| Item | Specification | Localization Adaptation Note |
|---|---|---|

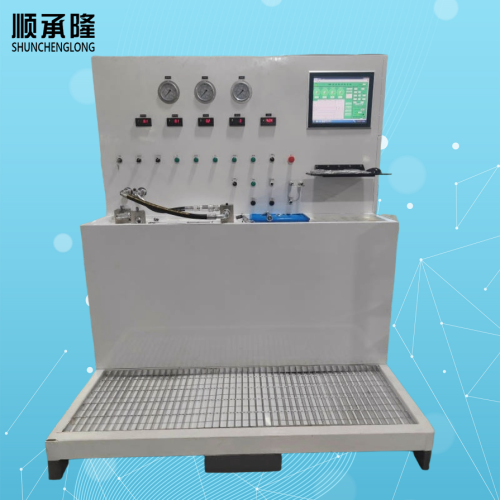

| Product Name | Specialized Hydraulic Valve Tester / dedicated hydraulic valve test rig | Metric & imperial unit switching; test protocols configurable to align with local machinery component standards |
| Brand | SCLON | Local technical support for custom fixture design, on-site commissioning and certified operator training |
| Test Pressure Range | 0 ~ 40 MPa | Custom hydraulic valve testing unit modular hydraulic circuit; custom pressure ramps for proportional, cartridge and special hydraulic valves |
| Pressure Control Accuracy | ±0.04 MPa | Meets stringent tolerance requirements for local third-party hydraulic component certification |
| Supported Test Items | Static leakage, pressure setting, flow characteristic, hysteresis, impulse fatigue test | Customizable test sequences tailored to non-standard and special-purpose hydraulic valves |
| Data Acquisition | Real-time curve capture, automatic pass/fail evaluation, timestamped PDF/CSV report export | Report templates pre-configured to satisfy local quality audit traceability rules |
| Power Supply | 380V/50Hz; optional 460V/60Hz | Dual power configuration compatible with industrial power grids across target regions |
| Control System | PLC + high-resolution touchscreen, fully programmable test recipes | Multi-language HMI optional, tailored workflow to reduce learning curve for local QC engineers |
| Hydraulic Assembly | Precision Hydraulic Test Setup Kit with interchangeable manifolds and custom clamping fixtures | Manifold layout customized to client valve samples, eliminates adapter mismatch errors |
| Mechanical Frame | Reinforced welded steel frame, vibration isolation feet, sealed dustproof cabinet | Optimized for continuous heavy-duty operation in local specialist manufacturing and rebuild workshops |
| Target Buyer Type | Local Application Scenario | Local Pain Point | Product Quantitative Advantages |
|---|---|---|---|
| Custom Hydraulic Valve OEM | End-of-line inspection for cartridge & proportional specialty hydraulic valves | Generic Industrial Valve Bench cannot match custom valve port layout; fixture mismatch causes 9–13% measurement deviation | Our dedicated hydraulic valve test rig uses custom manifolds; test deviation reduced below 1.0%, supports stable Precision Valve Testing |
| Hydraulic Component Rebuild Specialist | Post-repair validation for rare and discontinued hydraulic valves | Standard testers lack matching connection adapters; adapter fabrication adds 2.5 hours per valve test | Custom hydraulic valve testing unit comes with pre-built custom adapters; sample preparation time cut by 82% |
| Hydraulic R&D Design House | Characterisation testing for newly developed custom hydraulic valve prototypes | Off-the-shelf test benches limit adjustable test parameters; cannot replicate customer working conditions | Precision Hydraulic Test Setup Kit enables fully programmable pressure/flow profiles; condition simulation accuracy improved by 74% |
| Third-Party Niche Machinery Testing Lab | Certification testing for valves used in mining and marine hydraulic systems | Universal testers fail to satisfy strict local certification requirements for high-pressure specialty valves | Custom-tailored Valve Testing Solutions; audit rejection rate for test documentation reduced by 67% |
Jawaban: Ya. Sebagai kebiasaan Bangku Uji Katup Hidraulik, unit pengujian katup hidraulik khusus kami mencakup perlengkapan mesin khusus dan resep pengujian yang disesuaikan. Kami merancang Kit Pengaturan Uji Hidraulik Presisi berdasarkan gambar katup Anda sebagai bagian dari Solusi Pengujian Katup kami yang lengkap.
Jawaban: Sistem PLC mendukung profil tekanan, aliran, dan siklus yang dapat diprogram sepenuhnya. Insinyur dapat meniru kondisi beban kerja nyata, menjadikan Bangku Katup Industri ini cocok untuk inspeksi QC dan karakterisasi kinerja R&D tingkat lanjut.
Jawaban: Ya. Tim teknik kami menawarkan dukungan pemrograman resep jarak jauh, pelatihan di tempat, dan pasokan suku cadang. Kami membantu tim Anda memperbarui alur kerja pengujian setiap kali model katup khusus baru memasuki lini produksi Anda.
Mencari Solusi Pengujian Katup yang dirancang khusus atau Bangku Uji Katup Hidraulik yang dibuat khusus untuk katup hidraulik khusus Anda? Hubungi tim teknik kami sekarang. Bagikan gambar katup dan persyaratan kinerja Anda, dan kami akan menyiapkan proposal dan penawaran teknis khusus untuk rig pengujian katup hidraulik khusus Anda dan unit pengujian katup hidraulik khusus dengan Kit Pengaturan Uji Hidraulik Presisi.
