| Parameter | Specification | Localization Adaptation Note |
|---|---|---|
| Brand | SCLON | Built to meet ISO and regional machinery directives; supporting documentation ready for local factory compliance review |

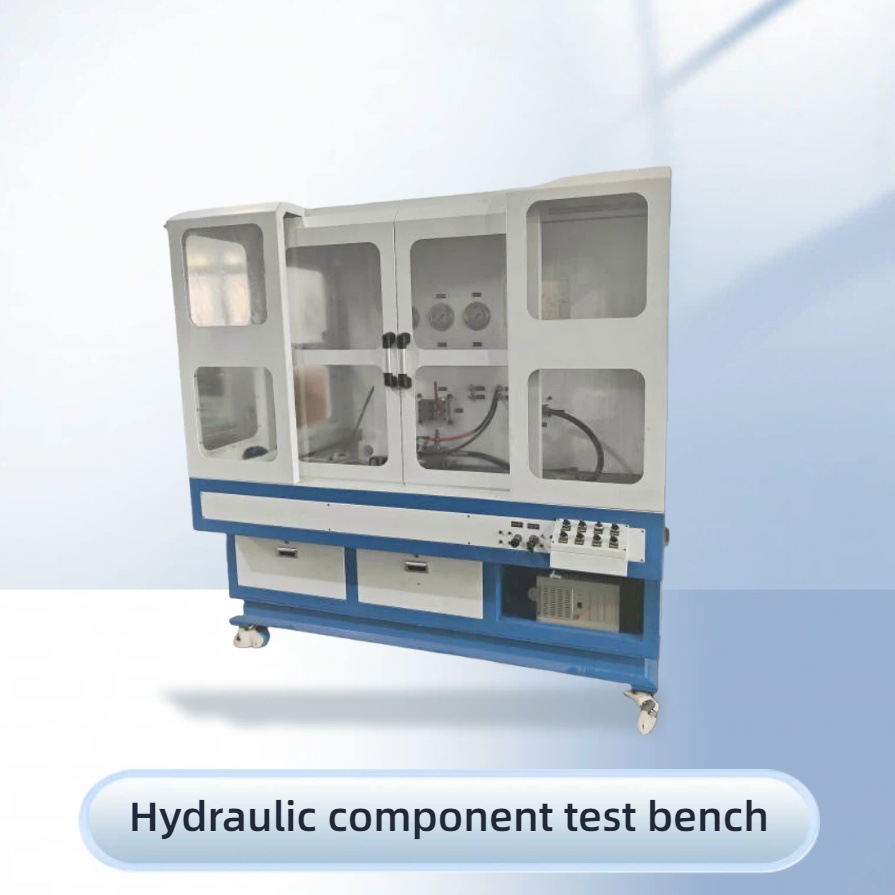

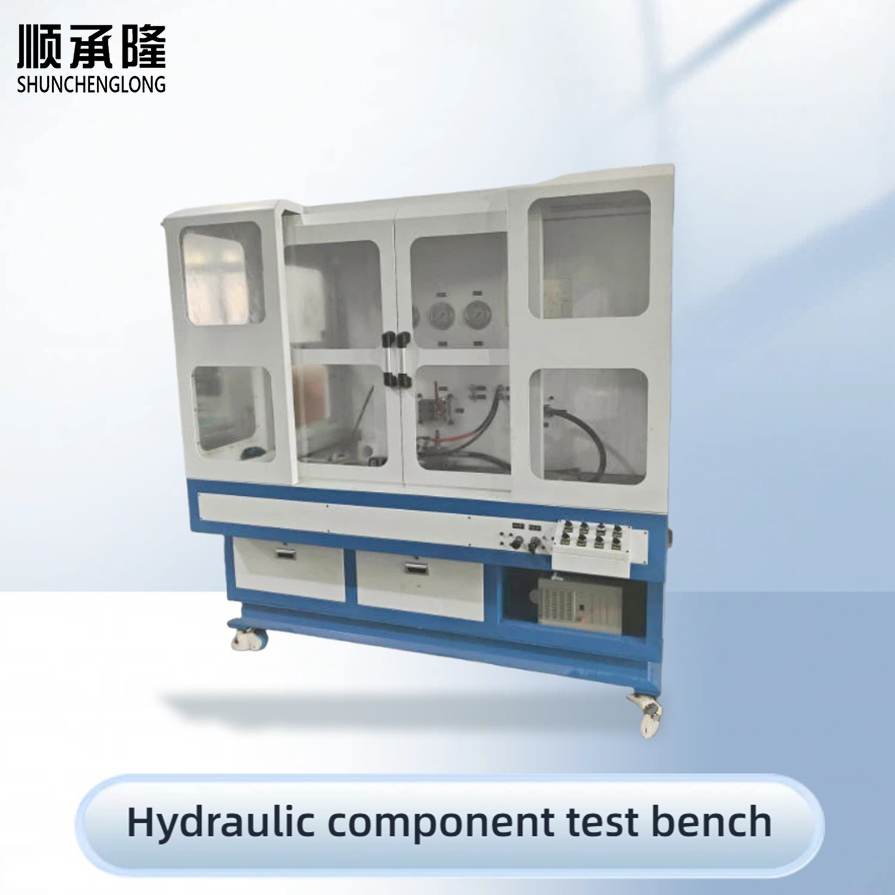

| Product Name | Professional Detector for Hydraulic Proportional Valves | Standalone detection unit, can work independently or integrate with full Proportional Valve Test Bench |
| Detectable Valve Types | 0–10V / 4–20mA proportional directional, pressure & flow control valves | Adaptable wiring terminals matching proportional valve brands widely used in target local market |
| Pressure Measurement Range | 0 ~ 31.5 MPa, accuracy ±0.12% FS | Pressure sensor calibrated to local metrology standards, traceable test certificates available |
| Flow Measurement Range | 0 ~ 200 L/min, accuracy ±0.2% FS | Modular flow sensor, supports low-flow micro adjustment for small proportional valves common in local machinery |
| Signal Sampling Rate | 10,000 Hz | Captures fast transient response curves required for local heavy equipment repair and quality inspection |
| Operating Power | 3-phase 380V / 415V optional | Dual voltage selection to match factory power supply configurations in target regions |
| Operating Interface | Multi-language touchscreen, Windows-based industrial system | English UI by default; supports local language pack installation; auto-generates PDF test reports |
| Data Export | USB, LAN remote export | Report template customizable to meet local ISO quality archive requirements |
| Protection System | Overpressure, overcurrent, oil temperature monitoring & auto-shutdown | Safety logic compliant with local industrial equipment safety codes |
| Target B2B Buyer | Local Application Scenario | Local Pain Point | Product Quantitative Advantage |
|---|---|---|---|
| Hydraulic Valve Repair Workshop | On-site proportional valve overhaul & performance detection | Manual testers miss transient signal anomalies; 22% of repaired valves return after reinstallation | This SCLON Hydraulic Valve Tester captures high-speed signal curves; valve re-failure rate reduced by 76% after Precision proportional valve test |
| Construction Machinery OEM Parts Plant | Incoming quality inspection of imported proportional valves | Old inspection tools cannot verify dynamic response; incoming inspection cycle takes 18 mins per valve | Complete High precision valve testing in 4.2 mins; inspection throughput increased by 328% |
| Hydraulic System Integrator | Pre-installation performance verification for machine assemblies | Lack of portable detector; need to ship valves to remote Proportional Valve Test Bench, high logistics cost | Compact detector works on-site; valve transportation cost cut by 68% |
| Component R&D Laboratory | Proportional valve control characteristic curve testing | Low sampling rate leads to distorted curves; repeated testing wastes oil & labor | 10kHz sampling rate for full curve capture; hydraulic oil consumption for testing reduced by 51% |
A1: Ya. Detektor SCLON mendukung antarmuka komunikasi standar. Ini dapat diintegrasikan secara mulus dengan Proportional Valve Test Bench Anda saat ini untuk pengumpulan data yang tersinkronisasi dan pengujian katup presisi tinggi. Teknisi kami akan memberikan panduan pencocokan antarmuka.
A2: Kami menyediakan sertifikat kalibrasi yang dapat dilacak dan panduan kalibrasi jarak jauh. Kami juga mendukung kit kalibrasi berkala, membantu Anda menjaga keakuratan pengukuran sesuai dengan persyaratan audit industri setempat.
A3: Sistem memungkinkan pengguna untuk mengedit dan menyimpan rutinitas pengujian khusus. Anda dapat mengatur parameter tekanan, aliran, dan sinyal agar sesuai dengan spesifikasi katup unik untuk kebutuhan proyek lokal Anda.
Hubungi SCLON sekarang untuk mendapatkan solusi khusus Anda untuk uji katup proporsional presisi. Bagikan model katup proporsional dan persyaratan deteksi Anda, dan tim teknis kami akan mengirimkan Anda kutipan terperinci, tata letak detektor, dan video demo gratis pengujian katup presisi tinggi.
Apakah Anda ingin saya mengekspor salinan ini ke format TXT yang bersih untuk diunggah langsung ke situs web?
