| Parameter | Specification | Localization Adaptation Note |
|---|---|---|
| Brand | SCLON | Compliant with ISO standards and regional machinery directives; complete test documentation ready for local third-party audit |

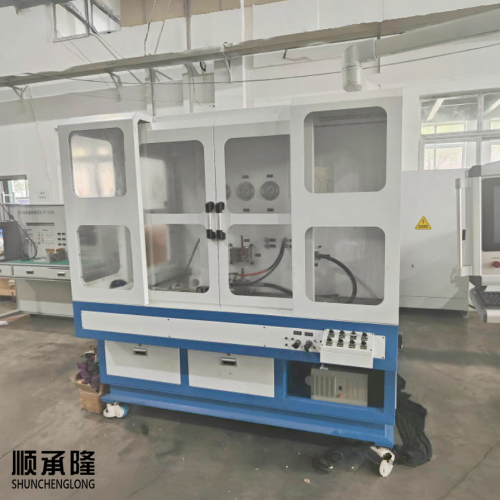

| Product Name | Advanced Valve Testing Equipment | Modular Hydraulic Valve Test Rig, expandable framework; can be configured as standard or Custom hydraulic valve test rig |
| Supported Valve Types | Proportional valves, servo valves, directional valves, pressure/flow control valves | Predefined valve connection blocks for popular hydraulic brands widely used in target markets |
| Pressure Range & Accuracy | 0~31.5 MPa; ±0.1% FS | Pressure sensors calibrated to local metrology standards, traceable calibration certificates available |
| Flow Range & Accuracy | 0~250 L/min; ±0.18% FS | Dual-range flow sensors, suitable for micro-flow servo valves and large industrial control valves |
| Data Sampling Rate | 10kHz real-time sampling | Captures fast dynamic response curves required by local heavy machinery OEM acceptance criteria |
| Control System | PLC + industrial touch HMI, open programming environment | Multi-language UI; operators can save, edit and duplicate custom test sequences locally |
| Power Input | 3-phase 380V / 415V optional | Dual voltage design to match factory power infrastructure across target regions |
| Data Output | Local SSD storage, LAN & USB export | Customizable report templates aligned with local QMS record retention requirements |
| Safety Mechanism | Overpressure, overheat, oil leakage and emergency stop interlock | Safety circuit designed following local industrial machine safety regulations |
| Target B2B Buyer | Local Application Scenario | Local Pain Point | Product Quantitative Advantage |
|---|---|---|---|
| Hydraulic Component OEM | Mixed-model incoming and finished goods inspection | Fixed test benches require rework of connection fixtures; fixture swap takes 24 mins per valve model | This Industrial Valve Test Unit uses quick-change adapters; model switching time reduced to 4 mins, 83% setup time saved |
| Hydraulic Repair Service Provider | Multi-type valve overhaul validation for mining & construction machines | Single-function Hydraulic Valve Test Rig cannot cover servo and proportional valves; separate testers increase capital cost | One Advanced Valve Testing Equipment covers 17+ valve types; equipment investment for multi-valve testing cut by 64% |
| Hydraulic System Design Contractor | Custom valve performance verification for bespoke hydraulic power packs | Off-the-shelf test rigs lack flexible test scripts; cannot meet special project test requirements | Deploy Custom hydraulic valve test rig configurations; custom test program development time shortened by 70% |
| Independent Third-Party Testing Lab | Neutral hydraulic component performance certification | Old Industrial Test Bench has limited data export options; audit report preparation is labour-intensive | Automated curve logging and formatted report generation; report preparation labour reduced by 61% during Precision Testing |
A1: Ya. Rig Uji Katup Hidraulik SCLON mendukung antarmuka komunikasi industri standar. Teknisi kami dapat melakukan docking perangkat keras dan perangkat lunak untuk menggunakan kembali sensor dan perlengkapan yang ada tanpa penggantian penuh.
A2: Kami dapat menyesuaikan rentang aliran/tekanan, menambahkan blok pemasangan katup khusus, dan membuat skrip pengujian khusus. Kami akan menyelesaikan pra-pengujian pabrik sebelum pengiriman agar sesuai dengan persyaratan Pengujian Presisi unik Anda.
A3: Kami menyediakan sertifikat kalibrasi yang dapat dilacak. Kami juga menyediakan panduan kalibrasi jarak jauh dan layanan kalibrasi opsional di lokasi di wilayah target untuk menjaga validitas data pengukuran untuk audit lokal.
Hubungi SCLON sekarang untuk mendiskusikan kebutuhan Peralatan Pengujian Katup Tingkat Lanjut dan Rig Uji Katup Hidraulik Anda. Bagikan jenis katup, spesifikasi pengujian, dan batasan ruang bengkel Anda, dan teknisi pengujian hidraulik kami akan memberikan gambar tata letak, kutipan, dan demonstrasi alur kerja Pengujian Presisi yang disesuaikan.
