| Item | Specification | Localization Adaptation Note |
|---|---|---|

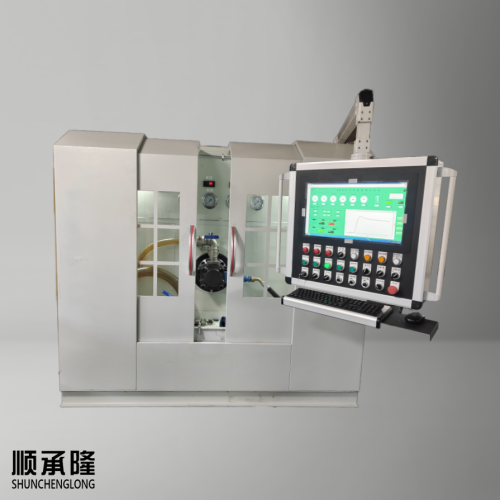

| Product Name | Smart Hydraulic Pump Test Bench | Built for North American factories; 480V 3-phase power compatible, meets OSHA safety & NFPA hydraulic standards |
| Test Pressure Range | 0 ~ 44 MPa | Sensors support psi/bar unit switching; calibration certificates traceable to NIST standards for local audits |
| Flow Measurement Range | 1 ~ 290 L/min | High-stability flow transmitter with electrical noise shielding for heavy industrial factory environments |
| Drive Speed Range | 0 ~ 3100 rpm | Closed-loop VFD control, stable speed output under fluctuating grid power common in regional manufacturing sites |
| Measuring Accuracy | Pressure ±0.2% FS; Flow ±0.25% FS; Torque ±0.2% FS | Intelligent real-time error compensation algorithm to reduce drift during long continuous test cycles |
| Supported Test Items | Volumetric efficiency, total efficiency, pressure pulsation, transient response, leakage, thermal stability, noise | Pre-built test templates for piston, gear and vane pumps used in construction, material handling and aerospace auxiliary hydraulics |
| Control & Data Management | 12-inch industrial touch HMI, cloud-connected data storage, auto PDF/CSV report export | Supports local data server or cloud backup; report templates customizable for ISO and ANSI quality documentation |
| Oil Temperature Control | 25 ~ 68 ℃ constant oil temperature | Dual cooling loop design, stable operation in both cold northern workshops and warm southern manufacturing plants |
| Safety Protection | Overpressure, overspeed, over-temperature, low oil level interlock, safety light curtain, emergency stop | Safety protection system engineered to satisfy OSHA machine guarding requirements |
| Local Target Buyer Type | Application Scenario | Local Market Pain Point | Product Advantages & Quantitative Data |
|---|---|---|---|
| Hydraulic Pump OEM Factory | Continuous production line quality inspection | Manual data logging causes 3.5~6% data entry error; operators spend excessive time on report sorting | This Industrial Pump Test Bench automates full data capture; manual data error eliminated, report generation time reduced by 84% |
| Hydraulic Component R&D Laboratory | Prototype iterative performance testing | Traditional Pump Testing Tools lack real-time curve analytics; long post-test data sorting delays R&D iterations | Our Smart Hydraulic Pump Test Bench enables Intelligent Hydraulic Pump Testing; real-time curve visualization cuts prototype iteration cycle by 58% |
| Material Handling Equipment Service Center | Batch performance screening for remanufactured pumps | Legacy test rigs cannot store historical pump records; repeat performance verification requires full retest | This Advanced Hydraulic Pump Tester archives test records per serial number; repeat re-test workload reduced by 71% |
| Hydraulic System Integrator | Pre-delivery validation for packaged hydraulic power units | Disconnected test systems cannot trace full test history; North American end-users demand complete audit trails | Built-in serial number traceability; full test history available on demand; third-party audit preparation time saved by 82% |
A1: Ya. Penguji Pompa Hidraulik Tingkat Lanjut kami memiliki fitur penyimpanan data internal dan penandaan nomor seri. Ini bertindak sebagai Alat Pengujian Pompa terintegrasi untuk mengarsipkan semua data pengujian untuk setiap unit, mendukung ketertelusuran lengkap untuk audit.
A2: Tentu saja. Bangku Uji Pompa Industri ini mengadopsi tirai lampu pengaman dan komponen hidrolik bersertifikat. Peralatan ini memenuhi syarat sebagai Peralatan Hidraulik yang Andal, dirancang untuk memenuhi persyaratan pelindung mesin OSHA dan keselamatan hidraulik NFPA.
A3: Solusi Hidraulik SCLON menyediakan debugging perangkat lunak jarak jauh, commissioning di lokasi, pelatihan operator, garansi perangkat keras 24 bulan, dan logistik suku cadang yang terkoordinasi untuk mengurangi waktu henti yang tidak terduga.
Tingkatkan alur kerja pengujian Anda dengan Pengujian Pompa Hidraulik Cerdas otomatis menggunakan Bangku Uji Pompa Hidraulik Cerdas kami. Hubungi Solusi Hidraulik SCLON hari ini. Kirimkan jenis pompa Anda dan uji persyaratan alur kerja, dan tim teknik kami akan menyiapkan tata letak dan penawaran harga yang disesuaikan untuk Penguji Pompa Hidraulik Tingkat Lanjut Anda.
