| Specification Item | Technical Parameter | Local Market Adaptation Notes for EU / North America |
|---|---|---|

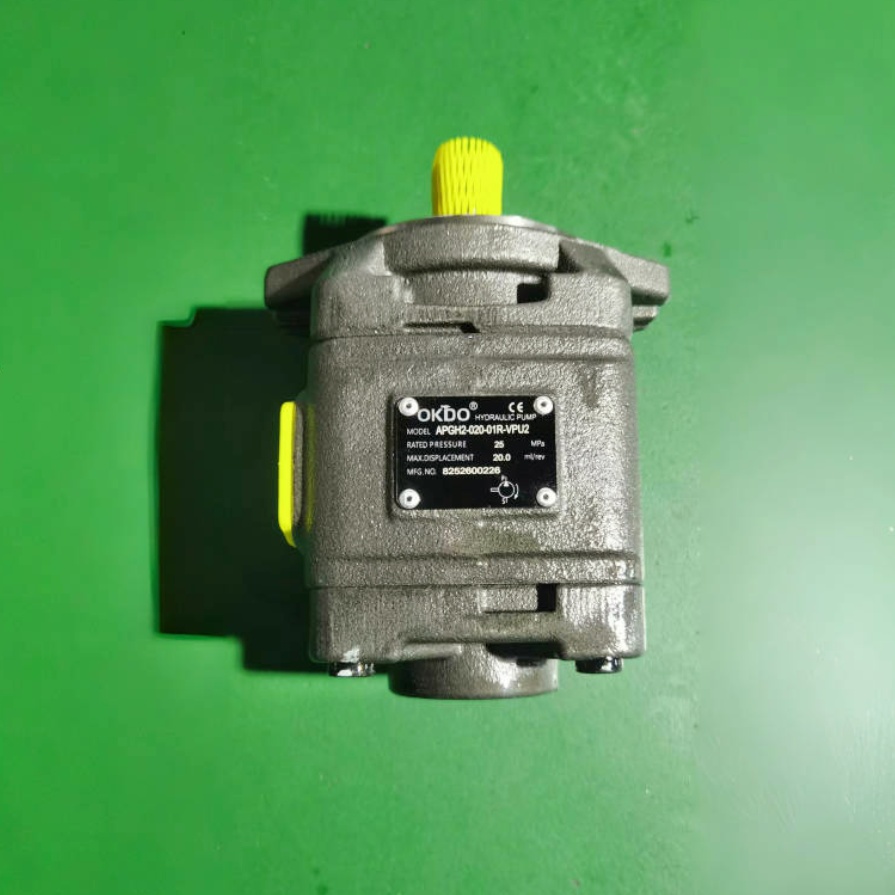

| Product Series | APG2 / APG3 / APG4 (Single); APG22 / APG32 / APG33 / APG43 / APG44 (Dual‑flow) | ISO3019‑1 SAE 2‑hole mounting flange, direct drop‑in swap for existing local industrial gear pumps, fits standard hydraulic power‑pack footprints |
| Displacement Range | Single pump:8‑160 mL/r；Dual pump: configurable mixed dual‑displacement | Flexible flow scaling for High flow internal gear pump and Precision High Flow Transfer Gear Pump custom transfer loop requirements |
| Continuous Operating Pressure | 315 bar (31.5 MPa); Intermittent peak pressure 350 bar(max 10 s, duty cycle ≤50%) | Meets CE machine‑directive pressure safety thresholds for high‑performance pumps deployed in precision production machinery |
| Permissible Rotational Speed | 600‑3000 r/min; HFC water‑based fluid limited to max 2000 r/min | Fully compatible with widely‑adopted servo variable‑frequency drives used in western precision manufacturing plants |
| Compatible Hydraulic Media | HLP mineral oil(DIN51524‑2), HFC water‑polymer solution, HEES eco‑friendly hydraulic fluid | Supports region‑preferred biodegradable hydraulic oils to satisfy EU factory environmental compliance rules |
| Working Temperature | Hydraulic oil:‑10 ~ +80 °C; Ambient environment:‑20 ~ +60 °C | Tolerates wide workshop temperature fluctuations common inside northern‑latitude manufacturing facilities |
| Acoustic Performance | 48‑78 dB(A), measured at 1‑meter test distance | Optimized involute tooth profile reduces noise; complies with EU occupational workplace noise‑exposure limits |
| Fluid Contamination Resistance | Compliant with ISO 4406(c) hydraulic fluid cleanliness grade | Better particle‑tolerance versus generic external gear pump, lowers filter replacement frequency for precision transfer circuits |
| Shaft & Sealing Options | Straight‑key shaft / spline shaft; NBR / FKM fluororubber seal | FKM seal option for sustained high‑temperature precision transfer cycles for OEM machine builds |
| Unit Weight | 4.6 kg‑45.5 kg (depends on series & displacement) | High‑strength cast‑iron housing; compact dimensions for cabinet‑mount precision hydraulic transfer stations |
| Localized Application Scenario | B‑End Buyer Type | Regional Market Core Pain Points | Quantitative Product Advantages |
|---|---|---|---|
| Precision servo‑controlled hydraulic transfer station for plastic forming presses | Press OEM & hydraulic system integrator | Local precision forming processes demand ultra‑stable flow; off‑the‑shelf industrial gear pumps generate large flow ripple leading to inconsistent part wall‑thickness and high scrap rates | 1. As Precision Transfer Gear Pump, flow ripple controlled below 1.8 MPa across full pressure range；2. Maintains ≥92 % volumetric efficiency running at low‑speed 600 r/min servo operation；3. Dual‑pump layout cuts cabinet footprint by 34 % compared to two independent gear pump assemblies |
| High‑capacity material‑handling hydraulic power unit for large warehouse electric forklift fleets | Mobile machinery OEM | Heavy‑duty lifting cycles require steady large‑volume oil delivery; competing high‑performance pumps lose flow output under elevated working oil temperature | 1. High flow internal gear pump variant sustains stable flow output even at 70 °C oil temperature；2. Service life improved by 40 % compared to ordinary external gear pumps；3. SAE‑standard flange enables fast field replacement for fleet maintenance teams |
| Multi‑channel hydraulic fluid distribution test bench for component qualification labs | Test‑bench OEM & industrial lab engineering house | Lab‑grade test rigs need repeatable fluid delivery; local suppliers have long lead‑times for custom Precision High Flow Transfer Gear Pump dual‑pump configurations | 1. Rich dual‑pump portfolio delivers diverse combined‑displacement selections；2. Every pump undergoes factory flow‑repeatability testing with ±1.2 % flow deviation tolerance；3. Short lead‑time for custom shaft, port and seal modifications for lab‑specific requirements |
| Servo‑driven hydraulic power unit for shoe‑making precision molding machinery | Molding‑machine builder & hydraulic solution vendor | Repetitive precision‑molding cycles amplify the negative impact of pump flow drift; end‑users suffer inconsistent product quality and increased waste | 1. Dual axial‑radial automatic gap compensation suppresses flow drift over runtime；2. Optimized tooth‑meshing geometry lowers operational noise；3. 100 % full‑load factory pre‑testing reduces on‑site flow‑related failure rate of finished power‑units |
A1: Ya. Dirancang sebagai Pompa Roda Gigi Transfer Presisi dan pompa roda gigi internal aliran tinggi, kompensasi celah aksial-radial ganda menjaga efisiensi volumetrik tinggi pada rentang pengoperasian 600‑3000 putaran/mnt. Ini dapat berfungsi sebagai pengganti drop-in untuk pompa roda gigi konvensional dan pompa roda gigi industri lainnya, ideal untuk persyaratan loop presisi Pompa Roda Gigi Transfer Aliran Tinggi Presisi.
A2: Seal NBR merupakan standar untuk sirkuit hidrolik oli mineral umum. Seal karet fluoro FKM(Viton) sangat direkomendasikan untuk siklus transfer presisi suhu tinggi yang berkelanjutan. Saat menggunakan cairan hidraulik polimer air HFC, kecepatan putaran masukan maksimum harus dibatasi hingga 2000 putaran/menit sesuai dokumentasi spesifikasi.
A3: Ya. Flensa pompa mematuhi spesifikasi 2 lubang ISO3019‑1 SAE. Poros khusus, tata letak lubang oli, dan kombinasi penyegelan tersedia untuk proyek tujuan khusus Pompa Roda Gigi Transfer Aliran Tinggi Presisi. Berikan persyaratan perpindahan, tekanan, dan antarmuka target Anda untuk penawaran resmi untuk proyek pompa roda gigi / pompa roda gigi industri Anda.
Butuh gambar dimensi CAD, kumpulan data karakteristik tekanan aliran lengkap, harga sampel, atau konfigurasi khusus untuk Desain Pompa Roda Gigi Berkinerja Tinggi yang Andal ini?
Silakan kirimkan persyaratan teknis Anda: perpindahan target, tekanan kerja berkelanjutan, spesifikasi poros, media penyegelan, dan detail skenario aplikasi. Tim penjualan teknis B‑end kami akan membalas dalam waktu 24 jam kerja, mengirimkan proposal & penawaran teknis yang disesuaikan untuk pompa roda gigi, pompa roda gigi industri, dan proyek pompa berkinerja tinggi Anda.
